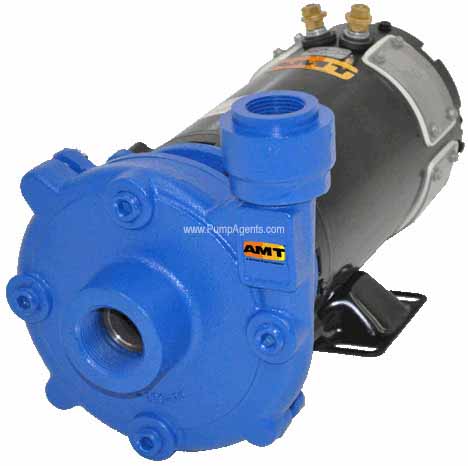

AMT # 489G-95 Cast Iron High Head Washdown Pump and Motor 1 HP

The AMT 489G-95 is a Cast Iron High Head Washdown Pump and Motor unit with a Buna-N Shaft Seal, 1-1/4 inch x 1 inch NPT Ports, coupled to a 1 Horsepower, 12 VDC Volts Motor. Pump construction is cast iron casing and adapter. Cast 316 stainless steel impeller. Buna N type 21 mechanical shaft seal with carbon and ceramic wear faces. O-ring casing seal. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). These pumps are non self-priming units designed for use where higher heads are needed to handle liquid transfer, heating and cooling applications, where no suction lift is required. All models feature high-efficiency closed impellers with 3450 RPM, 56J frame, 12 VDC motors. The discharge port on all models can be rotated in 90 degrees increments to accommodate specific applications. Casing working pressure to 150 psi (1034 kPa). These are manual units, no controls are supplied. Check motor wiring before putting unit into operation (see motor nameplate for specific wiring diagrams). All units are for use with non-flammable, nonabrasive liquids compatible with pump component materials.
