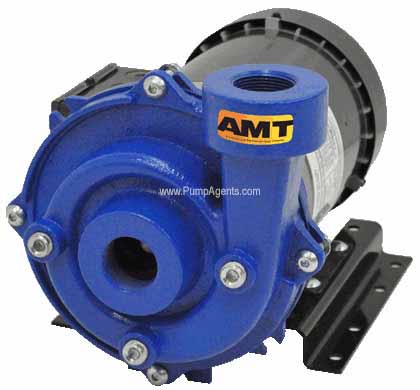

AMT # 12ES15C-3P Cast Iron Centrifugal Chemical Pump and Motor 1-1/2 HP

AMT Pump 12ES15C-3P

AMT # 12ES15C-3P

AMT catalog # 12ES15C-3P, Centrifugal Chemical Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 1-1/2 Horsepower, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor.

Price : $ 755.61

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The AMT 12ES15C-3P is a Cast Iron Centrifugal Chemical Pump and Motor unit with a EPDM/EPR Shaft Seal, coupled to a 1-1/2 Horsepower, 208-230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These are non-self-priming (gravity feed) units designed to handle liquid transfer, heating and cooling application, where no suction lift is required. All models feature semi-open solids handling/clog-resistant impellers and continous duty, 3450 RPM, 56J frame motors. Discharge port can be rotated in 90 degree increments to accommodate specific applications. Casing working pressure to 75 psi (517 kPa). These are manual units, no controls are supplied. For use with non-flammable, non-abrasive liquids compatible with pump component materials. Handles fluids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). Cast iron construction with EPDM/EPR seals and o-rings.

Features :

Pump Body:
Cast Iron
Shaft Seal:
EPDM/EPR Shaft Seal
Motor Specs :
1-1/2 Horsepower, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

Cast Iron Construction

EPDM/EPR Mechanical Seal and O-rings

303 Stainless Steel Motor Shaft

NEMA Dual Cycle 50/60 Hz Base Mounted Motor

Self-cleaning Impeller

Discharge Rotates in 45 degrees Increments

Maximum Working Pressure 125 PSI

Maximum Temperature 180 degrees F

Front Drain Plugs


Parts and Accessories for AMT model 12ES15C-3P


Impeller :

Catalog # 1A29-010-95, Impeller XCI 1.5HP 56 Frame Sub Assembly

Price: $ 113.40

Qty :

Can Ship : Same Day (2 in stock)


Shaft Seal :

Catalog # 1641-161-91, 0.63 Seal FS16 Ept/Epr/Car/Cer

Price: $ 59.94

Qty :

Can Ship : Same Day (2 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 2A29-001-95, Casing XCI Fs 1-1/4 Inch X1-1/4 Inch NPT, Cast Iron

Price: $ 348.30

Qty :

Can Ship : Same Day (2 in stock)


Motor :

Catalog # 1627-310-00, Motor, 1-1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 644.76

Qty :

Can Ship : Same Day (2 in stock)


Other Parts :

Catalog # 2A01-301-90, Epdm/Epr Es 0-RING

Price: $ 19.44

Qty :

Can Ship : Same Day (2 in stock)

Applications

The AMT 12ES15C3P Solids Handling End Suction Centrifugal pumps are designed for continuousduty OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling. Pullfromrear design for easy service without disturbing any piping. Selfcleaning impellers to prevent clogging and handles solids up to 3/8 Inch diameter depending on the model. Pumps are close coupled to Totally Enclosed Fan Cooled motors. Pumps are not selfpriming and require flooded suction.
