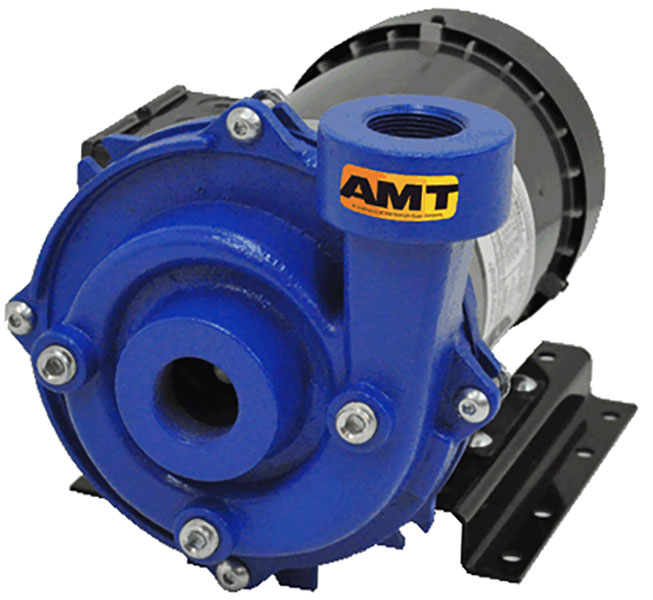

AMT Pump # 15ES20C-1P - Cast Iron Centrifugal Pump

The AMT Pump # 15ES20C-1P is an AMT Pump and motor unit # 15ES20C-1P - Cast Iron Centrifugal Pump and motor unit, with Cast Iron construction, Cast Iron impeller, EPDM shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 2 Horsepower, 1 Phase, 115-208/230 Volts, NEMA 56J frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor with base. This AMT Solids Handling Centrifugal pump is designed for continuous-duty OEM, Industrial/ Commercial and General Service applications including dirty water circulation, chemical processing, and liquid transfer. This pump is designed to handle liquids with solids content or dissolved solids and debris. It has a Self-cleaning impeller to prevent clogging, and handles solids up to 3/8 inch diameter depending on the model. The discharge port can be rotated in 90 degree increments to accommodate specific applications. The maximum casing working pressure to 75 psi (517 kPa). It can handle fluids from 40 degrees F to 200 degrees F (4 degrees C to 93 degrees C). It has a continuous duty, 3450 RPM, 56J frame motor. This pump is a manual model, and no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 15ES20C-1P weighs 67 Lbs.
