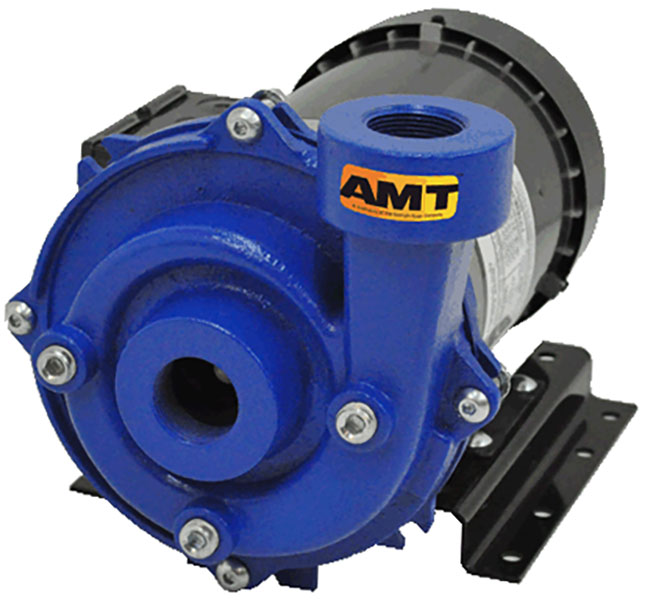

AMT # 1ES07C-3P Cast Iron Centrifugal Chemical Pump and Motor 3/4 HP

The AMT 1ES07C-3P is a Cast Iron Centrifugal Chemical Pump and Motor unit with a EPDM/EPR Shaft Seal, coupled to a 3/4 Horsepower, 208-230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These are non-self-priming (gravity feed) units designed to handle liquid transfer, heating and cooling application, where no suction lift is required. All models feature semi-open solids handling/clog-resistant impellers and continous duty, 3450 RPM, 56J frame motors. Discharge port can be rotated in 90 degree increments to accommodate specific applications. Casing working pressure to 75 psi (517 kPa). These are manual units, no controls are supplied. For use with non-flammable, non-abrasive liquids compatible with pump component materials. Handles fluids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). Cast iron construction with EPDM/EPR seals and o-rings.
