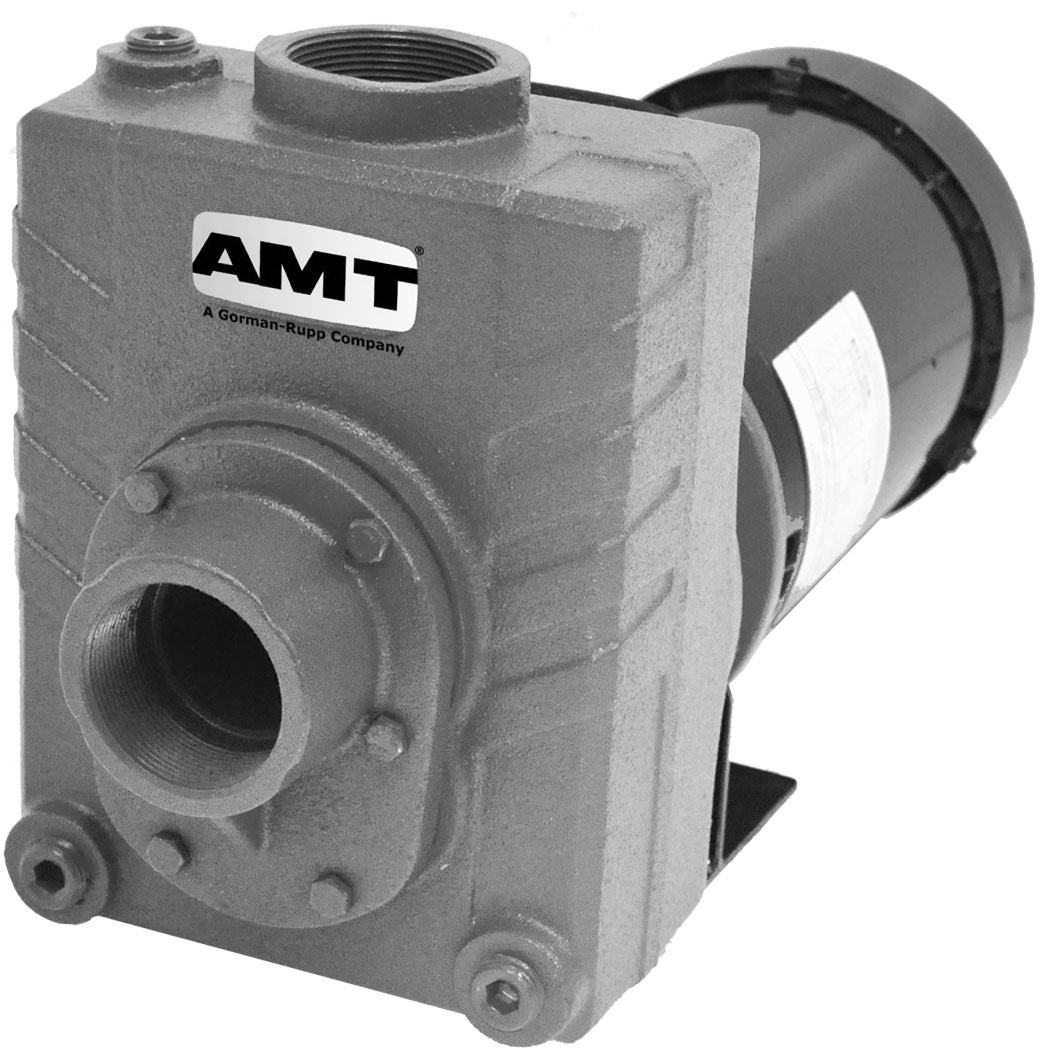

AMT Pump # 2764-98 - Stainless Steel Self-Priming Centrifugal Pump
AMT # 2764-98
AMT catalog # 2764-98, AMT Pump and motor unit # 2764-98 - Stainless Steel Self-Priming Centrifugal Pump and motor unit, with Cast Stainless Steel construction, Stainless Steel impeller, Viton shaft seal, 2 inch NPT Inlet port, 2 inch NPT Discharge port, coupled to a 1-1/2 Horsepower, 3 Phase, 230/460 Volts, ODP (Open Drip Proof) Electric Motor.
Price : $ 1559.25
Product Information :
Parts Page (click here)
Product Manual PDF (view)
The AMT Pump # 2764-98 is an AMT Pump and motor unit # 2764-98 - Stainless Steel Self-Priming Centrifugal Pump and motor unit, with Cast Stainless Steel construction, Stainless Steel impeller, Viton shaft seal, 2 inch NPT Inlet port, 2 inch NPT Discharge port, coupled to a 1-1/2 Horsepower, 3 Phase, 230/460 Volts, ODP (Open Drip Proof) Electric Motor. This centrifugal pump is self-priming, up to a 20 foot lift. This unit is designed for high volume liquid transfer, irrigation, dewatering, lawn sprinkling, and many other applications. This pump can accommodate semi-solids up to 3/8 inch dia., sediment laden liquids, and liquids with entrained air or gases. This pump is constructed of 300 series investment cast stainless steel and include Viton elastomers. It is direct coupled to NEMA 56J frame, 3450 RPM motors which requires field wiring, and no motor controls are supplied. This pump is equipped with a flapper valve to shorten re-prime time after initially filling casing with liquid. Handles liquids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). For use with nonflammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 2764-98 weighs 70 Lbs.
Features :
Parts and Accessories for AMT model 2764-98
Pump less Motor / Replacement Pumphead :
Catalog # 2764-K8, Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor.
Price: $ 1670.90
Shaft Seal :
Catalog # 1640-161-91, Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 47.30
Casing frozen or cracked ? New Pump Casing :
Catalog # 2760-001-V8, 276 Casing Kit Xss withViton Flapper for Parts Only, Stainless Steel, with 2 inch x 2 inch NPT Ports
Price: $ 1239.70
Seal Kit :
Catalog # 2760-304-98, Viton Seal and Gasket Rebuild Kit
Price: $ 112.20
Applications
Typical applications for the AMT 276498 pump include general water transfer moving water from tanks, ponds, or reservoirs, filling and emptying pools, cisterns, or storage units, and agricultural water movement and irrigation; industrial and commercial fluid handling transferring compatible chemicals, solvents, and other process fluids, washdown in factories or facilities, and booster pump duties; heating, cooling, and circulation recirculating fluids in chillers, cooling towers, and heat exchangers, supporting HVAC systems, and closedloop water circulation; mild chemical transfer handling waterlike fluids with minimal solids, suitable for a range of noncorrosive or lightly corrosive liquids depending on pump materials; and spraying and washdown agricultural spraying with light chemical mixes, and general equipment cleaning or rinsedown activities.
