AMT Pump # 276C-95 - Cast Iron Self-Priming Centrifugal Pump
AMT # 276C-95

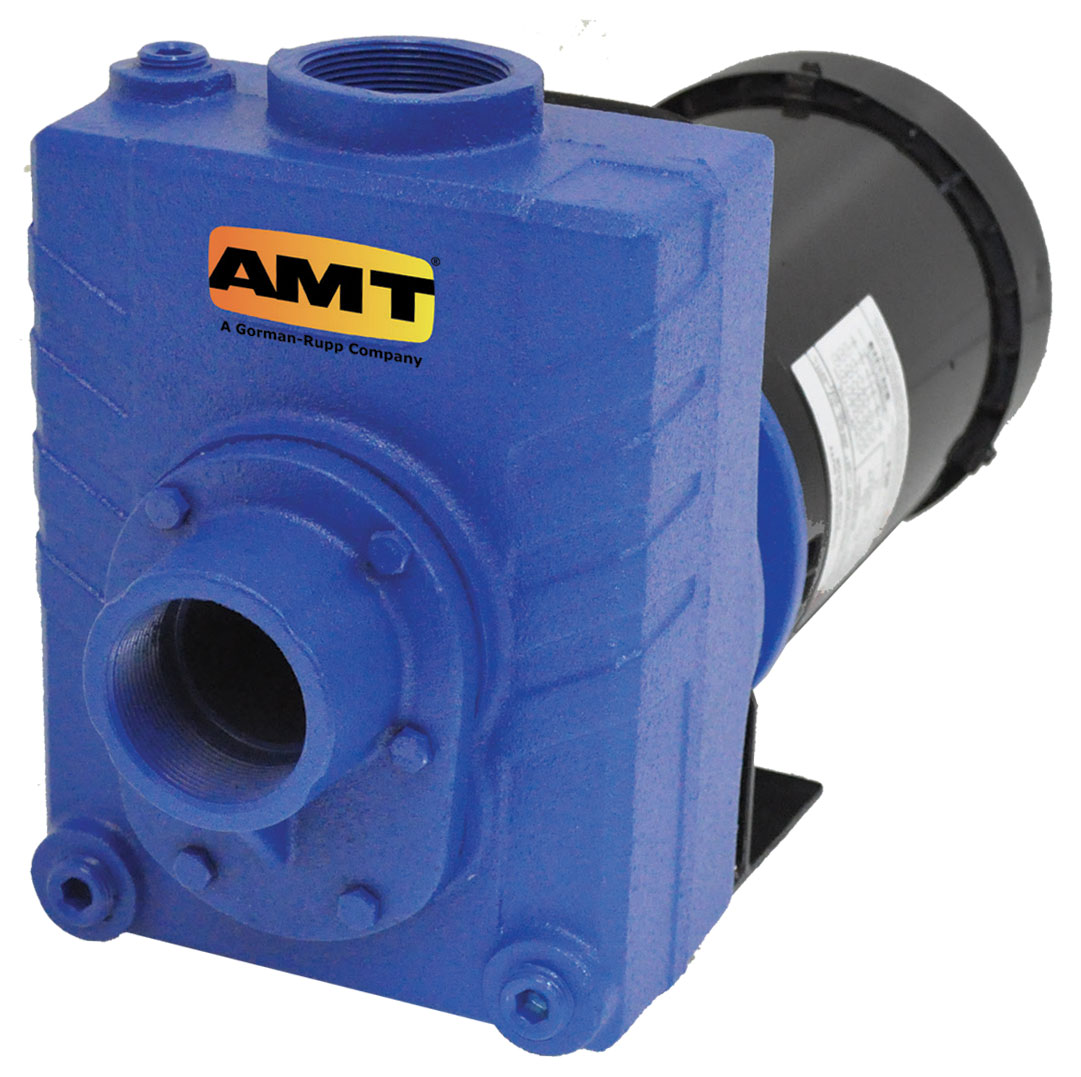

AMT catalog # 276C-95, AMT Pump and motor unit # 276C-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Cast Iron impeller, Buna shaft seal, 2 inch NPT Inlet port, 2 inch NPT Discharge port, coupled to a 3 Horsepower, 3 Phase, 230/460 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor.
Price : $ 978.00
Product Information :
Parts Page (click here)
Specsheet PDF (view)
The AMT Pump # 276C-95 is an AMT Pump and motor unit # 276C-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Cast Iron impeller, Buna shaft seal, 2 inch NPT Inlet port, 2 inch NPT Discharge port, coupled to a 3 Horsepower, 3 Phase, 230/460 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This centrifugal pump is self-priming, up to a 20 foot lift. This unit is designed for high volume liquid transfer, irrigation, dewatering, lawn sprinkling, and many other applications. This pump can accommodate semi-solids up to 3/8 inch dia., sediment laden liquids, and liquids with entrained air or gases. This pump is constructed of cast iron and include Buna elastomers (Viton elastomers optional, contact factory for availability). It is direct coupled to a NEMA 56J frame, 3450 RPM motor which requires field wiring, and no motor controls are supplied. This pump is equipped with a flapper valve to shorten re-prime time after initially filling casing with liquid. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 276C-95 weighs 78 Lbs.
Features :
Parts and Accessories for AMT model 276C-95
Pump less Motor / Replacement Pumphead :
Catalog # 276C-K5, Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor.
Price: $ 755.70
Motor :
Catalog # 1627-312-00, Motor, 3 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
Price: $ 748.00
Shaft Seal :
Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 19.80
Impeller :
Catalog # 2820-011-0C, 276E Impeller XCI 2HP ODP/3HP TEFC 3PH Mach
Price: $ 55.00
Casing frozen or cracked ? New Pump Casing :
Catalog # 2760-001-B5, Casing Kit XCI withBuna Flapper Valve for Parts, Cast Iron, with 2 inch x 2 inch NPT Ports
Price: $ 359.70
Seal Kit :
Catalog # 2760-304-95, Buna Seal and Gasket Rebuild Kit
Price: $ 47.30
Applications
Typical applications for the AMT 276C95 pump include general water transfer moving water from tanks, ponds, or reservoirs, filling and emptying pools, cisterns, or storage units, and agricultural water movement and irrigation; industrial and commercial fluid handling transferring compatible chemicals, solvents, and other process fluids, washdown in factories or facilities, and booster pump duties; heating, cooling, and circulation recirculating fluids in chillers, cooling towers, and heat exchangers, supporting HVAC systems, and closedloop water circulation; mild chemical transfer handling waterlike fluids with minimal solids, suitable for a range of noncorrosive or lightly corrosive liquids depending on pump materials; and spraying and washdown agricultural spraying with light chemical mixes, and general equipment cleaning or rinsedown activities.
