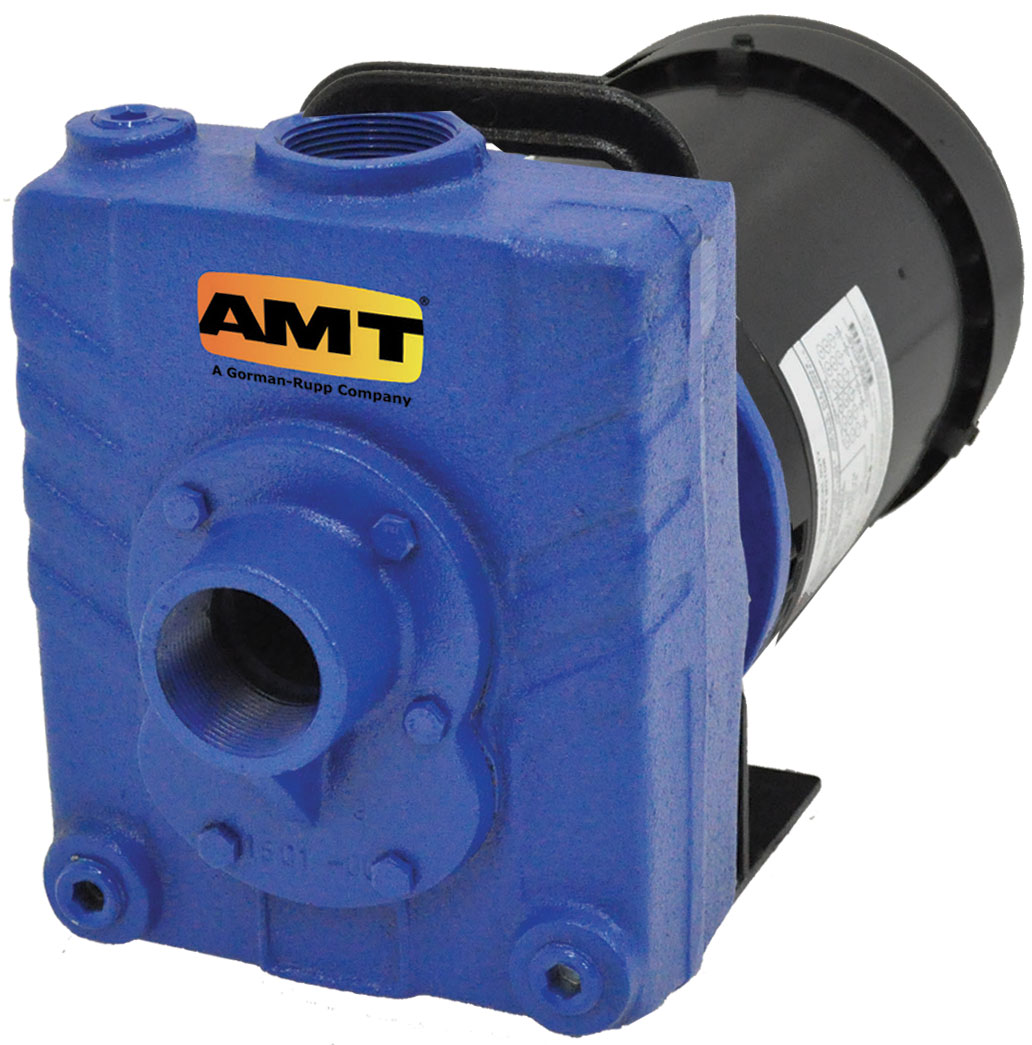

AMT Pump # 282M-95 - Cast Iron Self-Priming Centrifugal Pump

The AMT Pump # 282M-95 is an AMT Pump and motor unit # 282M-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Cast Iron impeller, Buna shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 3 Horsepower, 3 Phase, 230/460 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This centrifugal pump is self-priming, up to a 20 foot lift. This unit is designed for high volume liquid transfer, irrigation, dewatering, lawn sprinkling, and many other applications. This pump can accommodate semi-solids up to 3/8 inch dia., sediment laden liquids, and liquids with entrained air or gases. This pump is constructed of cast iron and include Buna elastomers (Viton elastomers optional, contact factory for availability). It is direct coupled to a NEMA 56J frame, 3450 RPM motor which requires field wiring, and no motor controls are supplied. This pump is equipped with a flapper valve to shorten re-prime time after initially filling casing with liquid. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 282M-95 weighs 70 Lbs.
