AMT # 2850-99 Cast Iron Self-Priming Pedestal Pump
AMT # 2850-99
AMT catalog # 2850-99, Self-Priming Pedestal Pump End Only. Cast Iron Construction. 1-1/4 inch x 1-1/4 inch NPT Ports.
Price : $ 418.30
Product Information :
Parts Page (click here)

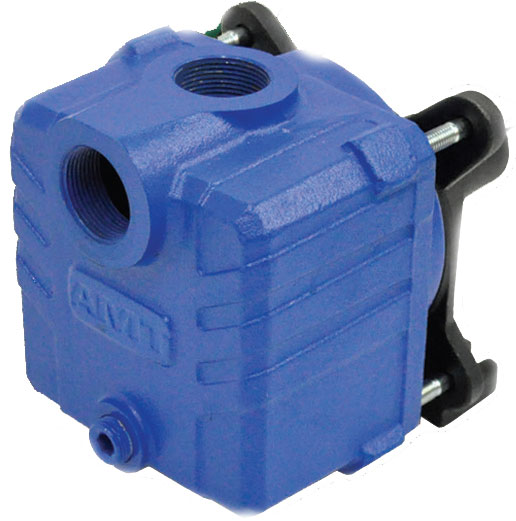

Product Manual PDF (view)The AMT 2850-99 is a Cast Iron Self-Priming Pedestal Pump with a Buna-N/SS Shaft Seal, 1-1/4 inch x 1-1/4 inch NPT Ports, bare shafted pedestal pump end only without a Motor. This self-priming (to 20 ft. lift) centrifugal pump is used for direct coupling or pulley drive medium head applications. Specific applications include liquid transfer, irrigations, dewatering, etc. Clog-resistant impeller can handle sediment laden liquids and semi-solids up to 3/8 Inch diameter. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable, non-abrasive liquids compatible with pump component materials.
Features :
Product Specs :
Maximum Working Pressure 75 PSI
Solids Handling to 3/8 Inch Diameter
Parts and Accessories for AMT model 2850-99
Impeller :
Catalog # 2850-010-03, Impeller Mach'd 1/2HP
Price: $ 64.80
Shaft Seal :
Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 24.30
Casing frozen or cracked ? New Pump Casing :
Catalog # 1558-000-02, 289 Casing Machined 3 Step 1-1/4 Inch, Cast Iron
Price: $ 298.08
Applications
The AMT 285099 SelfPriming Centrifugal Pedestal pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Heavy duty cast iron construction with BunaN seals or stainless steel with Viton seals. Pumps are fitted with a selfcleaning, semiopen impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000.
