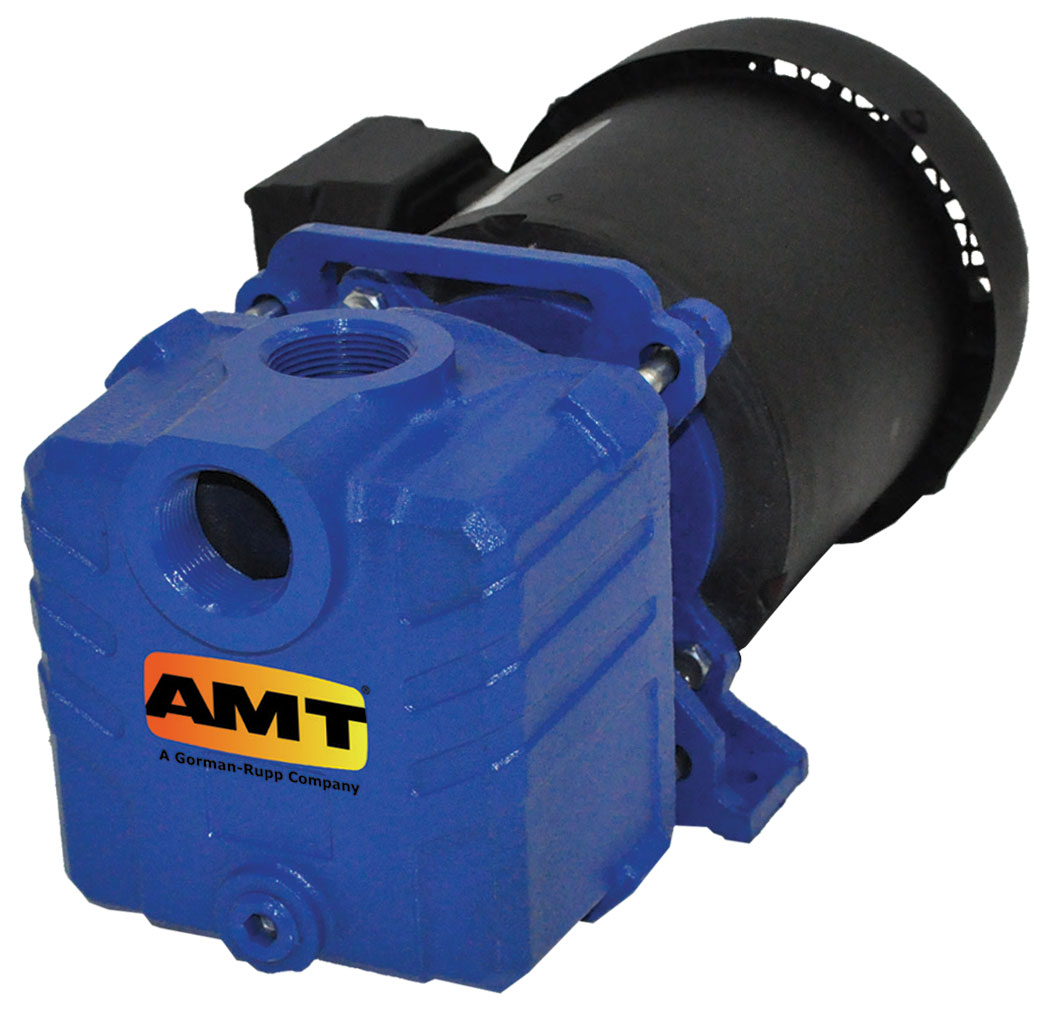

AMT # 2855-95 Cast Iron Self-Priming Centrifugal Pump and Motor 1 HP
AMT # 2855-95
AMT catalog # 2855-95, Cast Iron Self-Priming Centrifugal Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 1 Horsepower, 115/230 Volts, Single Phase, ODP (Open Drip Proof), NEMA 56J Frame Electric Motor. 1-1/4 inch x 1-1/4 inch NPT Ports.
Price : $ 666.61
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 2855-95 is a Cast Iron Self-Priming Centrifugal Pump and Motor unit with a Buna-N/SS Shaft Seal, 1-1/4 inch x 1-1/4 inch NPT Ports, coupled to a 1 Horsepower, 115/230 Volts, ODP Open Drip Proof, NEMA 56J frame electric Motor. These self-priming (to 15 ft. lift) (to 10 ft. lift on aluminum models) are designed for general purpose liquid transfer. Pumps include a semi-open clog resistant impeller. Handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C) with Buna N seals and 40 degrees to 200 degrees F (4 degrees to 93 degrees C) with Viton seals. Some units will handle liquid with up to 1.65 specific gravity. For use with non-flammable, non-abrasive liquids compatible with pump component materials.
Features :
Product Specs :
Cast iron construction
Buna-n mechanical seal and o-ring
Maximum temperature 180 f
Self-priming to 20 ft.
Self-cleaning, semi-open impeller
Parts and Accessories for AMT model 2855-95
Impeller :
Catalog # 2850-010-07, Impeller XCI Mach 1HP 1PH ODP 7/16-20 Threaded
Price: $ 64.80
Shaft Seal :
Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 24.30
Casing frozen or cracked ? New Pump Casing :
Catalog # 1558-000-03, 289 Casing Mach 2 Step 1-1/4 Inch, Cast Iron
Price: $ 298.08
Motor :
Catalog # 1626-011-00, Motor, 1 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
Price: $ 405.00
Applications
The AMT 285595 SelfPriming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with selfcleaning, semiopen impeller. The units will selfprime to 20 feet. Mounting base features 7/16" mounting holes, which are 6" OC. Builtin carrying handle offers portability.
