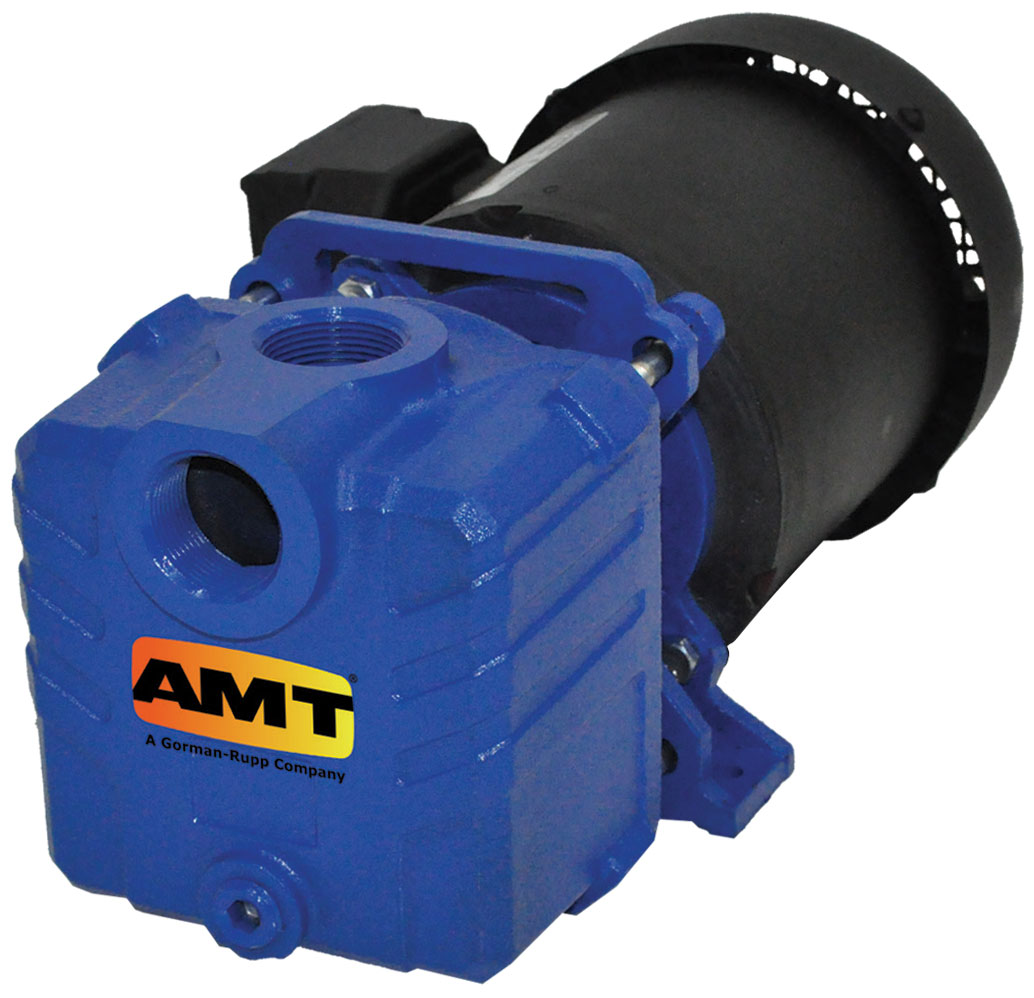

AMT Pump # 285J-95 - Cast Iron Self-Priming Centrifugal Pump
AMT # 285J-95
AMT catalog # 285J-95, AMT Pump and motor unit # 285J-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Cast Iron impeller, Buna shaft seal, 1-1/4 inch NPT Inlet port, 1-1/4 inch NPT Discharge port, coupled to a 1 Horsepower, 3 Phase, 230/460 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor.
Price : $ 679.50
Product Information :
Parts Page (click here)
Specsheet PDF (view)
The AMT Pump # 285J-95 is an AMT Pump and motor unit # 285J-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Cast Iron impeller, Buna shaft seal, 1-1/4 inch NPT Inlet port, 1-1/4 inch NPT Discharge port, coupled to a 1 Horsepower, 3 Phase, 230/460 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This pump is self-priming to a 20 foot lift when primed, and is designed for general purpose liquid transfer. This pump has a semi-open clog resistant impeller. The pump can handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C) with Buna N seals and 40 degrees to 200 degrees F (4 degrees to 93 degrees C) with optional Viton seals. This pump is direct coupled to a 3450 RPM motor, and is manual mode (non-automatic), and requires field wiring; no controls are supplied. Check motor wiring before putting unit into operation (see motor nameplate for specific wiring diagram). IMPORTANT : For use with non-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 285J-95 weighs 48 Lbs.
Features :
Parts and Accessories for AMT model 285J-95
Pump less Motor / Replacement Pumphead :
Catalog # 285J-K5, Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor.
Price: $ 463.10
Motor :
Catalog # 1627-309-00, Motor, 1 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
Price: $ 575.30
Shaft Seal :
Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 19.80
Impeller :
Catalog # 2850-010-06, 285E Impeller XCI 3/4HP 3PH Mach
Price: $ 44.00
Casing frozen or cracked ? New Pump Casing :
Catalog # 1558-000-02, 289 Casing Machined 3 Step 1-1/4 Inch, Cast Iron
Price: $ 234.30
Applications
The AMT 285J95 SelfPriming Cast Iron Centrifugal pump is designed for dirty water, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with selfcleaning, semiopen impeller. Pumps are designed to handle liquids with solids content or dissolved solids and debris.
