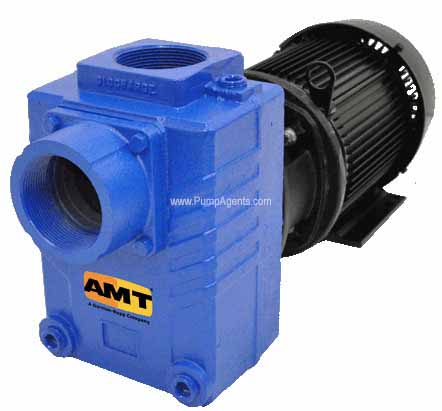

AMT Pump # 2876-95 - Cast Iron Self-Priming Centrifugal Pump

The AMT Pump # 2876-95 is an AMT Pump and motor unit # 2876-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 3 inch NPT Inlet port, 3 inch NPT Discharge port, coupled to a 7-1/2 Horsepower, 3 Phase, 208-230/460 Volts, NEMA 184JM frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This centrifugal pump is self-priming up to 20 foot lift when primed. This unit is designed for high volume liquid transfer - irrigation, de-watering, lawn sprinkling, etc. It can also accommodate semi-solids up to 3/8 inch diameter, sediment laden liquids and liquids with entrained air or gases. The maximum casing working pressure is up to 125 psi (862 kPa). The pump is equipped with a cast iron pump casing designed with a full dual volute, clog resistant semi-open stainless steel impeller and a cast iron adapter. Units are equipped with flapper valves to ensure a positive prime. A mechanical seal isolates the motor from the liquid in the pump casing. The units are coupled to 3450 RPM, totally enclosed fan cooled motors. All pumps are manual models, with no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 2876-95 weighs 176 Lbs.
