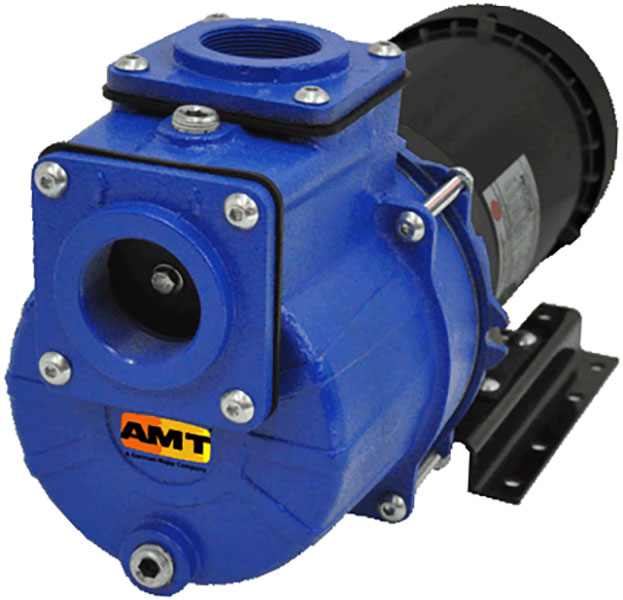

AMT # 2SP20C-3P Cast Iron Self-Priming Centrifugal Chemical Pump and Motor 2 HP
AMT # 2SP20C-3P
AMT catalog # 2SP20C-3P, Cast Iron Self-Priming Centrifugal Chemical Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 2 Horsepower, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor.
Price : $ 1066.22
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 2SP20C-3P is a Cast Iron Self-Priming Centrifugal Chemical Pump and Motor unit with a EPDM/EPR Shaft Seal, coupled to a 2 Horsepower, 208-230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These self-priming (to 20 ft. lift) chemical pumps are equipped with a check valve to assist in positive priming, a self-cleaning impeller, a EPDM/EPR mechanical seal to prevent leakage, and a continuous duty motor. Pumps are designed for higher pressure, high volume, liquid transfer applications such as chemical processing and general de-watering applications. Casing working pressure to 150 psi (1034 kPa). Handles fluids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable, nonabrasive liquids compatible with pump component materials.
Features :
Product Specs :
Cast iron construction with epdm/epr seals
Easy cleanout pull from rear design
Self-priming up to 20 feet with built-in check valve
Self-cleaning, clog resistant impeller
Motors feature 303 stainless steel shaft
Parts and Accessories for AMT model 2SP20C-3P
Impeller :
Catalog # 1A39-010-95, Impeller XCI 2HP 56 Frame Sub Assembly
Price: $ 113.40
Shaft Seal :
Catalog # 1641-161-91, 0.63 Seal FS16 Ept/Epr/Car/Cer
Price: $ 59.94
Casing frozen or cracked ? New Pump Casing :
Catalog # 1A31-001-95, Sp Casing Xci, Flanges Req'd, Kit, Cast Iron
Price: $ 324.00
Other Parts :
Catalog # 1A31-306-90, Epdm/Epr O-Ring/Gasket Kit
Price: $ 29.16
Applications
The AMT 2SP20C3P SelfPriming Centrifugal pumps are designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and chemical processing. These pumps feature a selfcleaning clog resistant impeller capable of handling up to 3/8" diameter semisolid and EPDM/EPR seals for liquid chemical transfer with specific gravities up to 1.3. Builtin check valve enables consistent selfpriming to 20 feet. Dual volute design reduces radial load on motor. Pumps feature Dual cycle 50/60 Hz TEFC motors.
