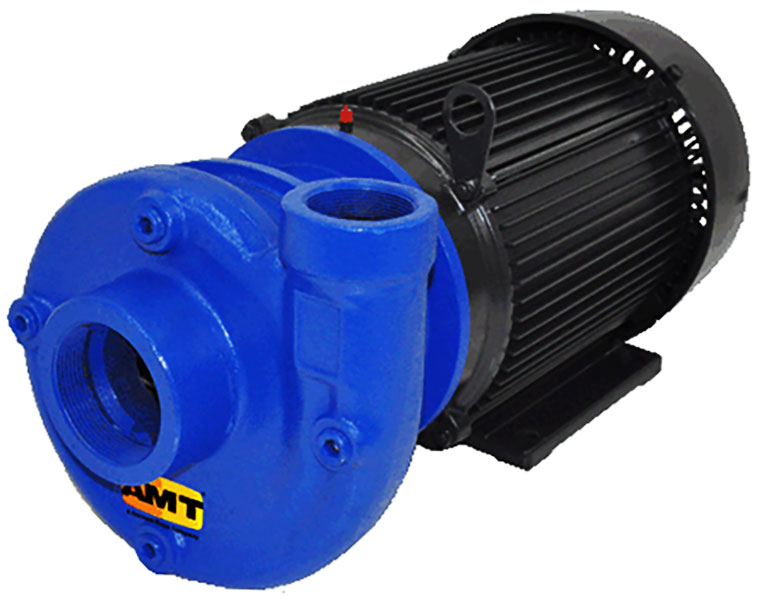

AMT # 3152-95 Cast Iron Industrial Centrifugal Pump and Motor 5 HP

The AMT 3152-95 is a Cast Iron Industrial Centrifugal Pump and Motor unit with a Buna-N/SS Shaft Seal, 2 inch x 1-1/2 inch NPT Ports, coupled to a 5 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 184JM frame electric Motor. Buna seals handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). These non self-priming centrifugal pumps are intended for liquid transfer, heating and cooling circulation, booster service and other industrial applications where no suction lift is required. All models feature a semi-open clog resistant impeller and a pull-from-the-rear design for easy servicing. A dual volute casing is used on all models except 4240. A mechanical seal (comprised of carbon, ceramic and stainless steel components) isolates motor shaft from liquid being pumped. Discharge port on pump casing can be rotated in 90 degrees increments with vent and drain plugs for all positions. Maximum ambient temperature 104 degrees F (40 degrees C). Casing working pressure to 100 psi (689 kPa). These are manual units, no controls are supplied. For use with nonflammable, non-abrasive liquids compatible with pump component materials.

Pumps are not self-priming and require flooded suction.
