AMT # 3160-95 Cast Iron Solids Handling Pump and Engine 4 HP
Product Information :
Parts Page (click here)

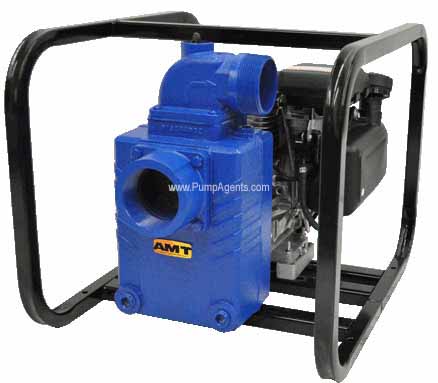

Product Manual PDF (view)The AMT 3160-95 is a Cast Iron Solids Handling Pump and Engine unit with a Cast Iron Impeller, Buna-N Shaft Seal, 2 Inch NPT Ports, coupled to a 4 Horsepower, Briggs and Stratton OHV Engine. These centrifugal pumps are engine-driven, self-priming (to 20 ft. lift), portable units, shipped completely assembled and mounted. Pumps include a clog resistant impeller capable of handling solids as large as 3/8 diameter (up to 25 percent by volume). A built-in check valve assists in priming and a mechanical shaft seal prevents leakage. Suction and discharge ports are 2 NPT female pipe thread. Handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable liquids compatible with pump component materials.
Features :
Product Specs :
Heavy Duty Cast Iron Construction
Self-Priming up to 20 Ft.
Semi-Open, Clog Resistant Impeller
Heavy Duty Steel Roll Frame Included
Built-in Check Valve
Maximum Working Pressure 75 PSI
Wear Resistant Cast Iron Construction and Solids Handling Impeller
Parts and Accessories for AMT model 3160-95
Impeller :
Catalog # 1493-000-01, Impeller XCI 3.00HPGF Mach
Price: $ 79.38
Shaft Seal :
Catalog # 1640-162-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 6, size 3/4 Inch
Price: $ 20.25
Casing frozen or cracked ? New Pump Casing :
Catalog # 2111-001-02, Casing XCI 396 Machine By Amt to 2 Inch NPT, Cast Iron
Price: $ 362.88
Applications
The AMT 316095 Engine Driven Solids Handling pumps offer an upgraded debris handling capability in wear resistant cast iron construction. Applications include high volume liquid transfer, irrigation, commercial draining and construction. All models feature durable all cast iron construction and clogresistant impeller to ensure a long life for the complete pump. Dual volute design reduces radial load on engines.
