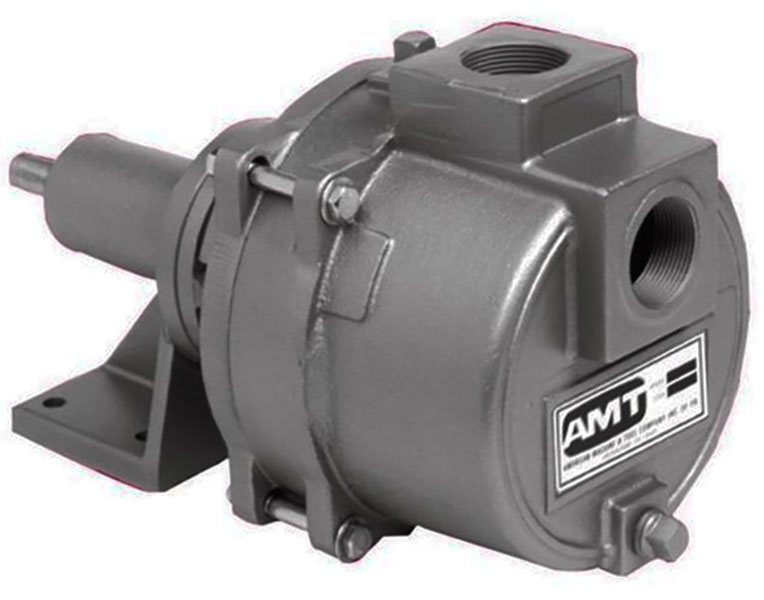

AMT # 3160-99 Cast Iron Self Priming Pedestal Pump and Motor 3 HP
AMT # 3160-99
AMT catalog # 3160-99, Self Priming Pedestal Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 3 Horsepower, Motor. 2 Inch NPT Ports.
Price : $ 594.52
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 3160-99 is a Cast Iron Self Priming Pedestal Pump and Motor unit with a Buna-N Shaft Seal, 2 Inch NPT Ports, coupled to a 3 Horsepower Motor. These self-priming (to 20 ft. lift @ 3450 RPM) centrifugal pumps include a clog resistant impeller capable of handling solids as large as 3/8 diameter (up to 25 percent by volume). A built-in check valve assists in priming and a mechanical shaft seal prevents leakage. Handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with
Features :
Product Specs :
Cast Iron Construction
2 Inch NPT Suction and Discharge Ports
Maximum Working Pressure 75 PSI
Maximum Temperature 180 degrees F
Self-priming to 20 Ft.
3/8 Inch Diameter Solids Handling Capability on 3160-99
Heavy Duty Cast Iron Bearing Housing Containing Precision Sealed Ball Bearings
3/4 Inch Diameter CNC Machined Shaft
1-3/8 x 3/16 x 3/32 Keyway
Parts and Accessories for AMT model 3160-99
Impeller :
Catalog # 1493-000-01, Impeller XCI 3.00HPGF Mach
Price: $ 79.38
Shaft Seal :
Catalog # 1640-162-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 6, size 3/4 Inch
Price: $ 20.25
Casing frozen or cracked ? New Pump Casing :
Catalog # 2111-001-02, Casing XCI 396 Machine By Amt to 2 Inch NPT, Cast Iron
Price: $ 362.88
Applications
The AMT 316099 SelfPriming Solids Handling Pedestal pumps are designed for direct or belt drive. Specific units are available in cast aluminum, cast iron or thermoplastic construction material. The units feature 3/8 Inch to 2 Inch solids handling construction and are fitted with a cast iron bearing housing, which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses
