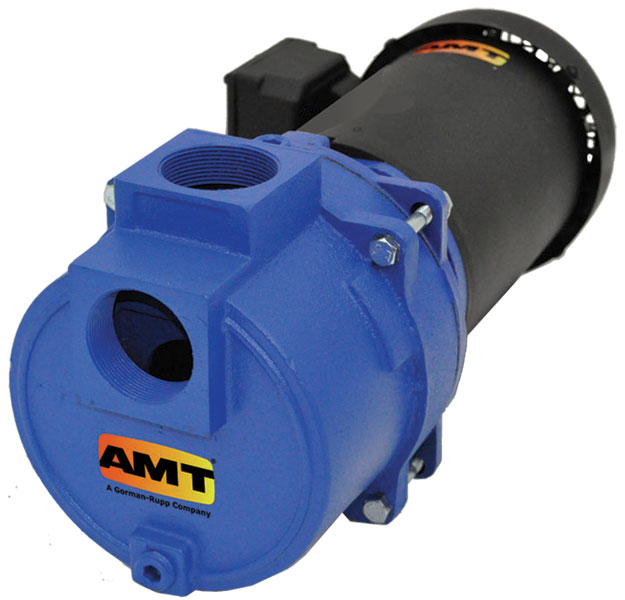

AMT # 316A-95 Cast Iron Sewage Trash Pump and Motor 3 HP
AMT # 316A-95
AMT catalog # 316A-95, Sewage Trash Pump and Motor unit. Cast Iron Construction with Stainless Steel Impeller and Viton Silicon/Carbide Shaft Seal. Pump is Close Coupled to a 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 2 inch x 2 inch NPT Ports.
Price : $ 1439.13
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 316A-95 is a Cast Iron Sewage Trash Pump and Motor unit with a Stainless Steel Impeller, Viton Silicon/Carbide Shaft Seal, 2 inch x 2 inch NPT Ports, coupled to a 3 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. This sewage/trash pump is a heavy duty, centrifugal, motor driven, self-priming (to 20 ft. lift) unit, after initially filling casing with liquid. Pump is equipped with a silicon carbide mechanical seal, cast iron wear surfaces and a stainless steel clog-resistant impeller. Units are used to handle water containing sewage, stones, sticks, mud and other solids: maximum diameter percent the discharge NPT size. Handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C) for use with nonflammable fluids compatible with pump component materials. All units come with built-in suction check valve to aid priming efficiency and easily removable casing/clean out cover and volute for quick debris clean out. Units are powered by totally enclosed fan cooled (TEFC) motors. Motor includes stainless steel shaft or stainless steel shaft sleeve.
Features :
Parts and Accessories for AMT model 316A-95
Shaft Seal :
Catalog # 1640-165-90, Mechanical Seal, Viton/Silicon Carbide, Type 21, size 5/8 Inch
Price: $ 94.50
Casing frozen or cracked ? New Pump Casing :
Catalog # 2111-001-02, Casing XCI 396 Machine By Amt to 2 Inch NPT, Cast Iron
Price: $ 362.88
Applications
The AMT 316A95 Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Cast iron construction with two vane stainless steel selfcleaning impellers, silicon carbide mechanical seals for abrasion resistance and BunaN Orings and check valves. Builtin check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85 percent maximum 15 percent solids. Failure to do so may damage pump and void warranty.
