AMT # 3201-96 Aluminum Laundry Tray Pump and Motor 1/4 HP
AMT # 3201-96

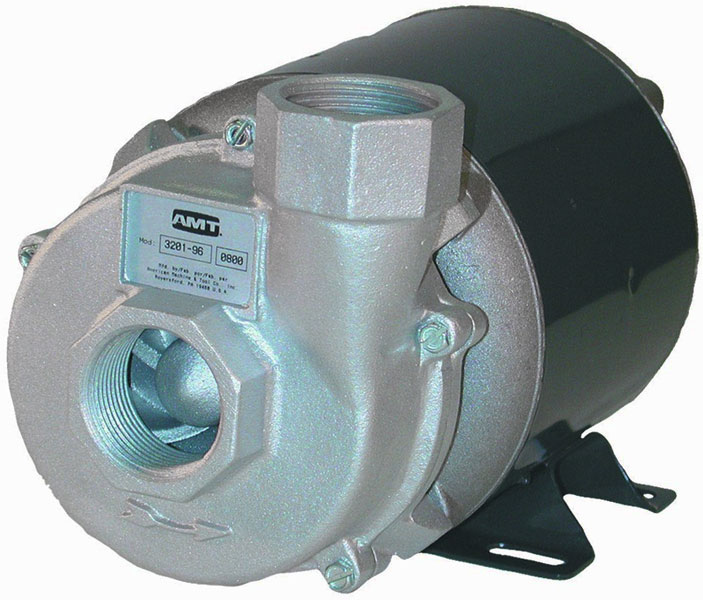

AMT catalog # 3201-96, Laundry Tray Pump and Motor unit. Aluminum Construction with Aluminum Impeller and Buna-N/SS Shaft Seal. Pump is Close Coupled to a 1/4 Horsepower, 115 VAC Volts, Single Phase, ODP (Open Drip Proof) Motor. 1-1/4 inch x 1-1/4 inch NPT Ports.
Price : $ 286.58
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 3201-96 is an Aluminum Laundry Tray Pump and Motor unit with a Aluminum Impeller, Buna-N/SS Shaft Seal, 1-1/4 inch x 1-1/4 inch NPT Ports, coupled to a 1/4 Horsepower, 115 VAC Volts, ODP Open Drip Proof Motor. This centrifugal laundry tray pump is designed for gravity-feed pumping operations. Unit can handle laundry water or other nonflammable, non abrasive fluids compatible with pump construction. Pump is equipped with mechanical seal (carbon face with Buna-N seal cartridge), cast aluminum body and impeller, and a split-phase motor. This is a manual unit, no controls are supplied. Unit does not come supplied with any type of switch or control device to turn unit on or off.
Features :
Product Specs :
Cast Aluminum Construction
Buna-N Mechanical Seal and O-ring
1-1/4˝ NPT Suction and Discharge Port
Maximum Working Pressure 50 PSI
Maximum Temperature 180 degrees F
Maximum Flow 24 GPM
Maximum Head 11 Ft.
Self-Cleaning, Semi-Open Impeller
1/4 HP, 115 VAC Single Phase Open Drip Proof 1725 RPM 48Z Frame Motor
Continuous Duty Motor
Parts and Accessories for AMT model 3201-96
Impeller :
Catalog # 3200-010-96, 320 Impeller Xa, Aluminum
Price: $ 38.88
Shaft Seal :
Catalog # 1640-161-93, Mechanical Seal, Buna-N, Type 11A, size 5/8 Inch
Price: $ 17.82
Casing frozen or cracked ? New Pump Casing :
Catalog # 3200-001-96, 298 and 320 Casing 320 Laundry Tray, Aluminum, with 1-1/4 inch x 1-1/4 inch NPT Ports
Price: $ 63.18
Motor :
Catalog # 1626-048-00, Motor, 1/4 Horsepower, 115 Volts, ODP Open Drip Proof, 60 Hz, Nema 56C Frame, replacement electric motor only (pump is not included)
Price: $ 255.96
Other Parts :
Catalog # 3200-300-90, Gasket, Buna
Price: $ 17.82
Applications
The AMT 320196 Laundry Tray pumps are a single stage, multivane open impeller unit. It is designed as a laundry tray pump, but can be used for most gravity fed general service pumping applications. The 1/8 Inch diameter solids handling open impeller design makes it particularly adaptable to dirty, as well as clean liquids and is inherently resistant to clogging. The pump is constructed of cast aluminum and features 11/4 Inch NPT suction and discharge ports. Pump is powered by a 1725 RPM, 115 VAC, 1/4 HP motor. Pumps are not selfpriming and require flooded suction.
