AMT Pump # 3682-95 - Cast Iron Pedestal Pump

AMT Pump 3682-95

AMT # 3682-95

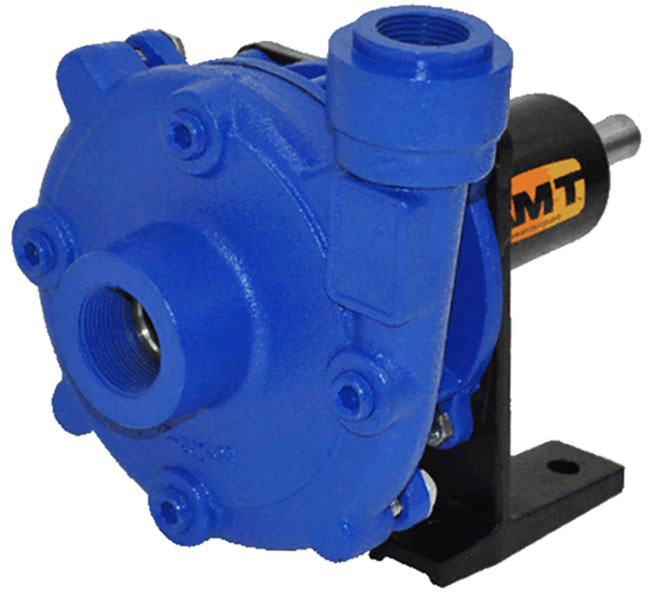

AMT catalog # 3682-95, Cast Iron Pedestal Pedestal pump end only, less motor, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 3/4 inch Inlet port, 1/2 inch Discharge port, bare shafted Pedestal pump end only on a bearing Pedestal without a motor.

Price : $ 336.00

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The AMT Pump # 3682-95 is an AMT Pedestal pump end only, less motor # 3682-95 - Cast Iron Pedestal Pedestal pump end only, less motor, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 3/4 inch Inlet port, 1/2 inch Discharge port, bare shafted Pedestal pump end only on a bearing Pedestal without a motor. This Straight Centrifugal Pedestal pump is designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. This pump is designed to handle liquids with solids contents or dissolved solids and debris up to 7 percent of liquid volume. Discharge port rotates 360 degrees in 90 degree increments. This pump incorporates a mechanical shaft seal and O-ring casing seal. Pumps are cast iron with cast 316 stainless steel impeller and bronze pedestal. Shaft seal is stainless steel, carbon, ceramic and Buna N elastomers. Handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). ONLY for use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 3682-95 weighs 10 Lbs.

Features :


Parts and Accessories for AMT model 3682-95


Shaft Seal :

Catalog # 1640-161-92, Mechanical Seal, Buna-N, Type 6A, size 5/8 Inch

Price: $ 20.00

Qty :

Can Ship : Same Day (2 in stock)


Shaft Seal :

Catalog # 1640-161-95, Mechanical Seal, Viton, Type 6A, size 5/8 Inch

Price: $ 44.00

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 3680-010-98, Impeller Xss 0.33HPODP 3PH, 6A

Price: $ 77.00

Qty :

Can Ship : Same Day (2 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3680-002-95, CASING XCI 3/4 X 1/2 SUBGRP

Price: $ 85.00

Qty :

Can Ship : Same Day (2 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3680-003-97, CASING XNB 3/4 X1/2 SUBGROUP

Price: $ 215.00

Qty :

Can Ship : Same Day (2 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3680-001-98, CASING XSS 3/4 X 1/2 SUBGRP

Price: $ 209.00

Qty :

Can Ship : Same Day (2 in stock)

Applications

The AMT 368295 pump is designed for continuousduty OEM, industrial, commercial, and processing applications, including circulation, chemical processing, liquid transfer, heating, and cooling; they can handle liquids with solids content or dissolved solids and debris up to 7 percent of liquid volume.
