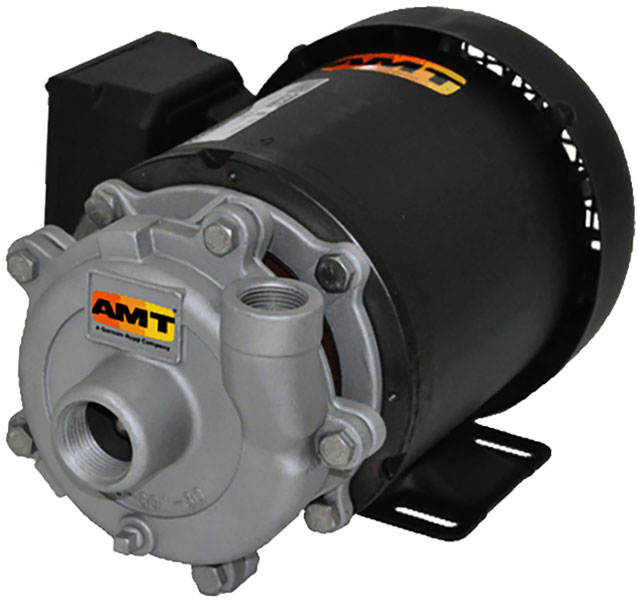

AMT Pump # 368B-98 - Stainless Steel Centrifugal Pump

The AMT Pump # 368B-98 is an AMT Pump and motor unit # 368B-98 - Stainless Steel Centrifugal Pump and motor unit, with Cast Stainless Steel construction, Stainless Steel impeller, Viton shaft seal, 3/4 inch NPT Inlet port, 1/2 inch NPT Discharge port, coupled to a 1/2 Horsepower, 1 Phase, 115/230 Volts, NEMA 56J frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor with base. This AMT Solids Handling Centrifugal pumps is designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, dirty water and liquid transfer. It's self-cleaning impeller prevents clogging and handles solids of 1/8 inch diameter. This pump is designed to handle liquids with solids content or dissolved solids and debris. It has a continuous duty rated, 3450 RPM, 56J frame motor. It's discharge port can be rotated in 90 degree increments to accommodate specific applications. Pump construction is Investment Cast 300 Series Stainless Steel casing, adapter and impeller, with a Viton mechanical shaft seal with carbon and ceramic wear faces, and a Viton O-ring casing seal. It can handle liquids from 40 degrees F to 200 degrees F (4 degrees C to 93 degrees C). It has a maximum casing working pressure of up to 75 psi (517 kPa). This pump is a manual model, with no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 368B-98 weighs 35 Lbs.
