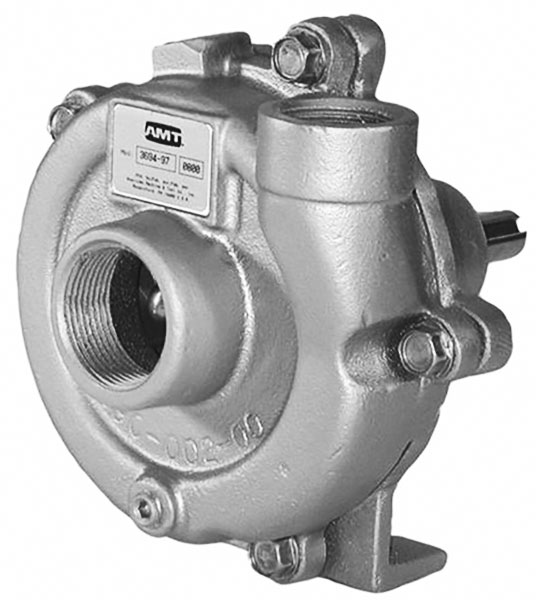

AMT Pump # 3694-98 - Stainless Steel Pedestal Pump
AMT # 3694-98
AMT catalog # 3694-98, AMT Pedestal pump end only, less motor # 3694-98 - Stainless Steel Pedestal Pedestal pump end only, less motor, with Stainless Steel construction, Stainless Steel impeller, Viton shaft seal, 1-1/4 inch Inlet port, 1 inch Discharge port, bare shafted Pedestal pump end only on a bearing Pedestal without a motor.
Price : $ 599.25
Product Information :
Parts Page (click here)
Specsheet PDF (view)
The AMT Pump # 3694-98 is an AMT Pedestal pump end only, less motor # 3694-98 - Stainless Steel Pedestal Pedestal pump end only, less motor, with Stainless Steel construction, Stainless Steel impeller, Viton shaft seal, 1-1/4 inch Inlet port, 1 inch Discharge port, bare shafted Pedestal pump end only on a bearing Pedestal without a motor. This Straight Centrifugal Pedestal pump is designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. This pump is designed to handle liquids with solids contents or dissolved solids and debris up to 7 percent of liquid volume. Discharge port rotates 360 degrees in 90 degree increments. This pump incorporates a mechanical shaft seal and O-ring casing seal. Pump construction is cast 316 stainless steel with a shaft seal of stainless steel, carbon, ceramic, and Viton elastomers. It can handle liquids from 40 degrees F to 200 degrees F (4 degrees C to 93 degrees C). ONLY for use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 3694-98 weighs 13 Lbs.
Features :
Parts and Accessories for AMT model 3694-98
Shaft Seal :
Catalog # 1640-161-92, Mechanical Seal, Buna-N, Type 6A, size 5/8 Inch
Price: $ 22.00
Shaft Seal :
Catalog # 1640-161-95, Mechanical Seal, Viton, Type 6A, size 5/8 Inch
Price: $ 48.40
Impeller :
Catalog # 3690-010-98, IMP XSS 1.50HPODP 3PH SUBGRP (6A)
Price: $ 99.00
Casing frozen or cracked ? New Pump Casing :
Catalog # 3690-003-97, CASING XB 1-1/4 X 1 SUBGRP
Price: $ 316.80
Casing frozen or cracked ? New Pump Casing :
Catalog # 3690-001-98, CASING XSS 1 1/4 X 1 SUBGRP
Price: $ 280.50
Applications
The AMT 369498 pump is designed for continuousduty OEM, industrial, commercial, and processing applications, including circulation, chemical processing, liquid transfer, heating, and cooling; they can handle liquids with solids content or dissolved solids and debris up to 7 percent of liquid volume.
