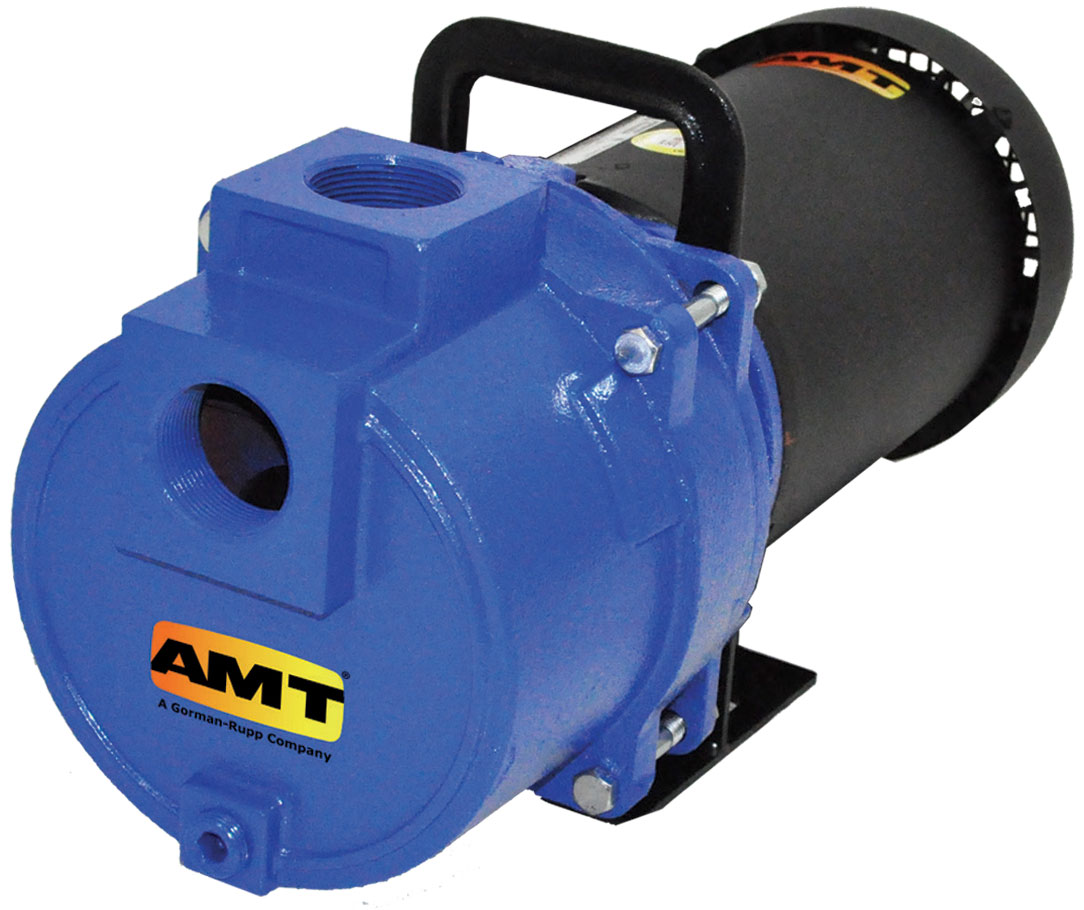

AMT Pump # 379A-95 - Cast Iron Self-Priming Centrifugal Pump
AMT # 379A-95
AMT catalog # 379A-95, AMT Pump and motor unit # 379A-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 1 Horsepower, 1 Phase, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor.
Price : $ 705.75
Product Information :
Parts Page (click here)
Specsheet PDF (view)
The AMT Pump # 379A-95 is an AMT Pump and motor unit # 379A-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 1 Horsepower, 1 Phase, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This self-priming pump has up to a 20 foot lift when primed It is equipped with a check valve to assist in positive priming, a high performance closed impeller, a Buna-N mechanical seal to prevent leakage and a continuous duty motor. Pumps are designed for higher pressure applications such as lawn sprinkling, spraying irrigation, also draining and general de-watering applications. Maximum casing working pressure to 150 psi (1034 kPa). This pump handles fluids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). This pump is a manual model, with no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 379A-95 weighs 67 Lbs.
Features :
Parts and Accessories for AMT model 379A-95
Pump less Motor / Replacement Pumphead :
Catalog # 379A-K5, Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor.
Price: $ 607.20
Shaft Seal :
Catalog # 1640-161-96, Mechanical Seal, Buna-N, Type 21, size 5/8 Inch
Price: $ 24.20
Impeller :
Catalog # 379A-011-98, IMPELLER XSS 0.75HP 3PH SUBGRP
Price: $ 168.30
Motor :
Catalog # 1626-303-00, Motor, 1 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
Price: $ 490.60
Applications
Typical applications for the AMT 379A95 pump include general water transfer moving water from tanks, ponds, or reservoirs, irrigation and turf watering, and filling or emptying pools, cisterns, and other storage units; industrial and commercial fluid handling transferring compatible chemicals, solvents, or process fluids, circulating and boosting water in cooling or heating loops, and industrial washdown systems; booster and circulation applications boosting water pressure in commercial or remote building systems, recirculating fluids in chillers, cooling towers, or heat exchangers, and adding flow in closedloop systems; mild chemical transfer handling waterlike fluids with minimal solids, suitable for a wide range of pH within the pumps material limits; and spraying and washdown agricultural spraying of noncorrosive, light chemical mixes, and cleaning or washdown in food processing.
