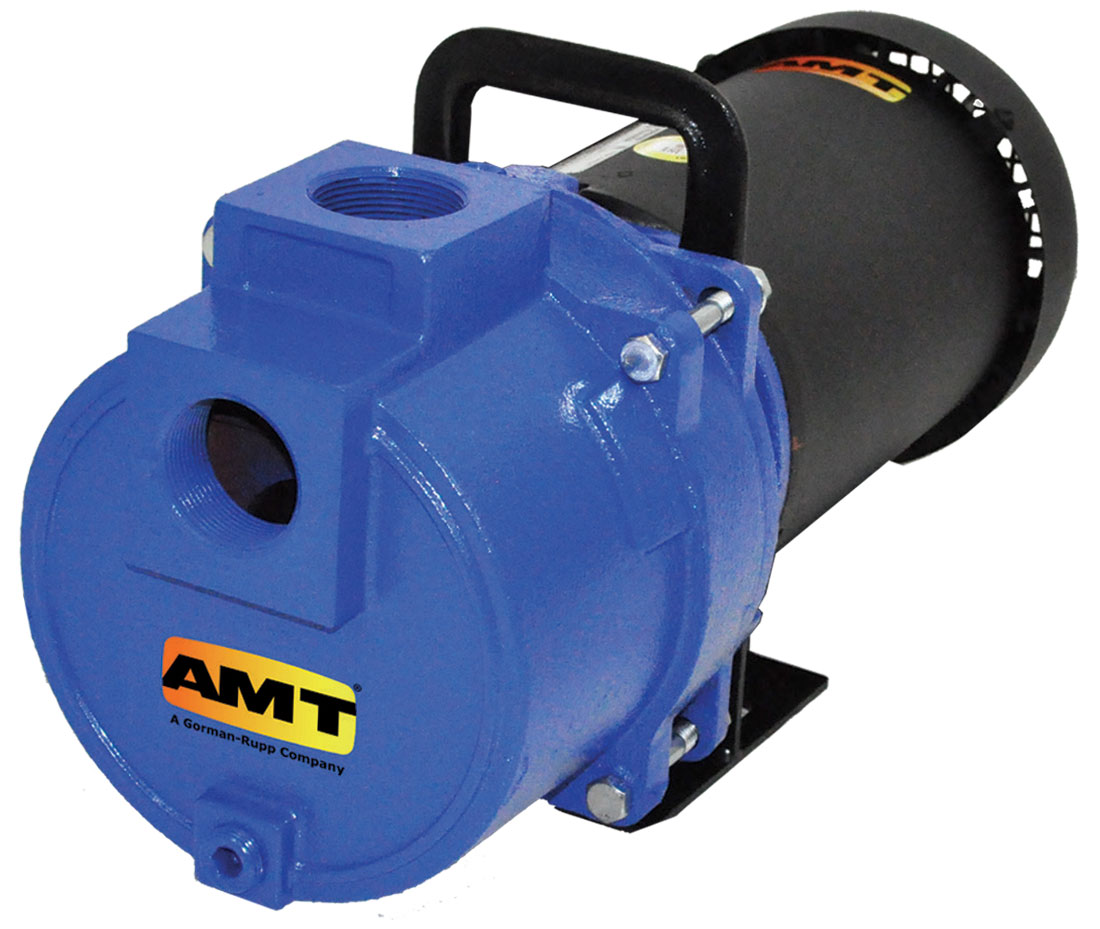

AMT # 379B-95 Cast Iron Sprinkler Booster Pump and Motor 1-1/2 HP
AMT # 379B-95
AMT catalog # 379B-95, Sprinkler Booster Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 1-1/2 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 1-1/2 inch x 1-1/2 inch NPT Ports.
Price : $ 739.14
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 379B-95 is a Cast Iron Sprinkler Booster Pump and Motor unit with a Buna-N Shaft Seal, 1-1/2 inch x 1-1/2 inch NPT Ports, coupled to a 1-1/2 Horsepower, 115/230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These self-priming (to 20 ft. lift) lawn sprinkler pumps are equipped with a check valve to assist in positive priming, a high performance closed impeller, a Buna-N mechanical seal to prevent leakage and a continuous duty motor. Pumps are designed for higher pressure applications such as lawn sprinkling, spraying irrigation, also draining and general de-watering applications. Casing working pressure to 150 psi (1034 kPa). Handles fluids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable, nonabrasive liquids compatible with pump component materials.
Features :
Product Specs :
Cast Iron Construction with 300 Series Investment Cast Stainless Steel Impellers
Buna-N Mechanical Seal and O-Ring
Maximum Temperature 180 degrees F
Self-Priming to 20 Ft.
Parts and Accessories for AMT model 379B-95
Shaft Seal :
Catalog # 1640-161-96, Mechanical Seal, Buna-N, Type 21, size 5/8 Inch
Price: $ 24.30
Motor :
Catalog # 1626-304-00, Motor, 1-1/2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
Price: $ 644.76
Applications
The AMT 379B95 Sprinkler/Booster pumps feature 300 Series Investment cast stainless steel closed impellers for high efficiency and resistance against erosion caused by abrasive particles. All models selfprime to 20 feet. Single stage models feature dual volute design to reduce radial load on motor and a builtin check valve to ensure fast priming after initial liquid is added to the pump. Cast iron construction provides durability and low maintenance. Easy cleanout design includes replaceable dual volute/diffuser and casing oring for servicing. Twostage models provide additional pressure in fractional horsepower sizes for multisprinkler head applications. Type 21 mechanical seals handle maximum working pressure to 150 PSI.
