AMT # 3826-99 Thermoplastic Solids Handling Pedestal Pump and Motor 5 HP

AMT Pump 3826-99

AMT # 3826-99

AMT catalog # 3826-99, Solids Handling Pedestal Pump and Motor unit. Thermoplastic Construction. Pump is Close Coupled to a 5 Horsepower, Motor. 2 Inch NPT Ports.

Price : $ 469.03

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

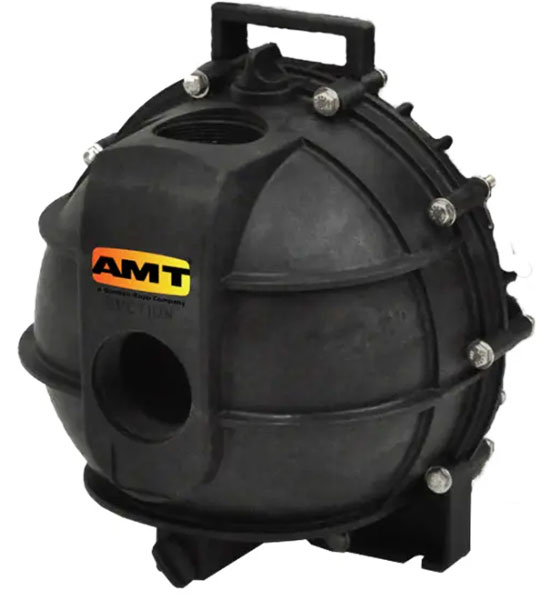

The AMT 3826-99 is a Thermoplastic Solids Handling Pedestal Pump and Motor unit with a Buna-N Shaft Seal, 2 Inch NPT Ports, coupled to a 5 Horsepower Motor. This self-priming (to 20 ft. lift) centrifugal pump includes a mechanical seal with carbon/ceramic wear faces and stainless steel spring, Buna N seals, and a built-in check valve. Clog resistant impeller is capable of handling solids up to 7/16" diameter. Pump includes molded carrying handle, rubber foot pads, and two 2" NPT pipe nipples. Handles liquids from 40 degrees to 130 degrees F (4 degrees to 54 degrees C). For use with nonflammable, non-abrasive liquids compatible with pump component materials. Applications include pumping clear, clean water, salt water, and some liquid fertilizers and herbicides. An optional EPDM Seal/O-ring/Flapper Kit (see Repair Parts List) is available for pumping Alachlor Herbicides (such as Monsanto's Lasso). If the fertilizer or herbicide is not compatible with Buna-N (standard) or EPDM (optional) rubber materials, do not use these pumps.

Features :

Pump Body:
Thermoplastic
Shaft Seal:
Buna-N Shaft Seal
Port Size:
2 Inch NPT Ports.
Motor Specs :
5 Horsepower.

Product Specs :

Thermoplastic Construction

Buna-N Check Valve and O-rings

2 Inch NPT Suction and Discharge Ports

Maximum Working Pressure 60 PSI

Maximum Temperature 130 degrees F

Self-priming to 20 Ft.

2 Inch Dewatering Construction

1/4 Inch Diameter Solids Handling Capability

Heavy Duty Cast Iron Bearing Housing Containing Precision Sealed Ball Bearings

3/4 Inch Diameter CNC Machined Shaft

1-3/8 Inch x 3/16 Inch x 3/32 Inch Keyway


Parts and Accessories for AMT model 3826-99


Seal Kit :

Catalog # 3827-300-91, Buna Seal and Gasket Rebuild Kit

Price: $ 71.28

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 3827-012-00, Impeller 3HP Polypro

Price: $ 25.92

Qty :

Can Ship : Same Day (2 in stock)


Shaft Seal :

Catalog # 1640-162-95, Mechanical Seal, Buna-N, Type 6A, size 3/4 Inch

Price: $ 24.30

Qty :

Can Ship : Same Day (2 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3827-003-00, Casing Polypro 2 Inch NPT Blank, Thermoplastic

Price: $ 82.62

Qty :

Can Ship : Same Day (2 in stock)

Applications

The AMT 382699 SelfPriming Solids Handling Pedestal pumps are designed for direct or belt drive.
