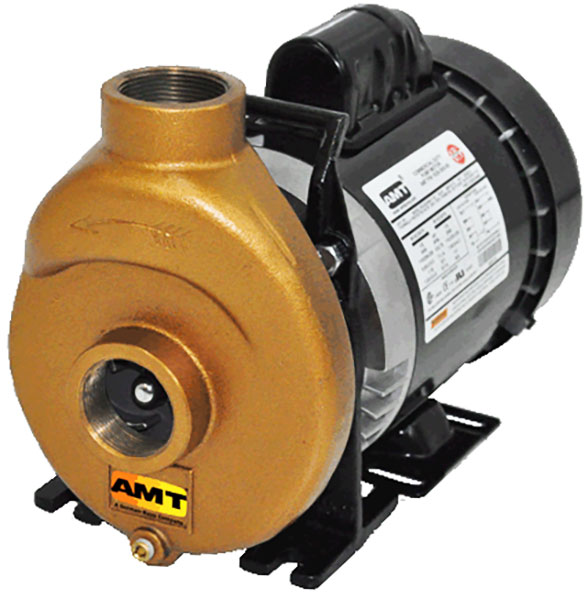

AMT # 388G-97 Bronze Inline Centrifugal Pump and Motor 3/4 HP
AMT # 388G-97
AMT catalog # 388G-97, Bronze Inline Centrifugal Pump and Motor unit. Bronze Construction with Stainless Steel Impeller and Buna-N/SS Shaft Seal. Pump is Close Coupled to a 3/4 Horsepower, 115/208-230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor..
Price : $ 679.43
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 388G-97 is a Bronze Inline Centrifugal Pump and Motor unit with a Stainless Steel Impeller, Buna-N/SS Shaft Seal, coupled to a 3/4 Horsepower, 115/208-230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These bronze centrifugal pumps are designed for medium volume liquid handling compatible with all pump component materials. Handles liquids from 40̊ to 180̊ F (4̊ to 82̊ C). For use with nonflammable, non-abrasive liquids compatible with pump component materials.
Pumps are not self-priming and require flooded suction.
Features :
Product Specs :
Bronze Construction
Buna-N Mechanical Seal and O-Ring
1-1/2 Inch x 1-1/2 Inch NPT Thread
Maximum Working Pressure 75 PSI
Maximum Temperature 180 degrees F
Maximum Head 62 Ft.
Maximum Solids Handling Capacity: 1/8 Inch Diameter
Self-cleaning Stainless Steel Impeller
Pull-from-Rear Design for Easy Servicing Without Removing Piping
Maximum 1/8 Inch Diameter Solids Handling
Parts and Accessories for AMT model 388G-97
Impeller :
Catalog # 3880-011-97, 388X Impeller Xss.75HP Subgrp/Kit, Stainless Steel
Price: $ 113.40
Shaft Seal :
Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 24.30
Casing frozen or cracked ? New Pump Casing :
Catalog # 3880-003-97, Casing 1.5 Inch NPT X 1.5 Inch NPT Xb, Bronze
Price: $ 534.60
Motor :
Catalog # 1626-302-00, Motor, 3/4 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
Price: $ 542.70
Other Parts :
Catalog # 2104-004-00, 245 O-Ring Buna N
Price: $ 9.72
Applications
The AMT 388G97 Bronze Inline Centrifugal pumps are designed for use with most gravity fed service applications requiring liquid transfer. All models are fitted with a selfcleaning stainless steel impeller for maximum 1/8 Inch diameter solids handling. Units feature pullfromrear design for easy servicing without removing piping.
