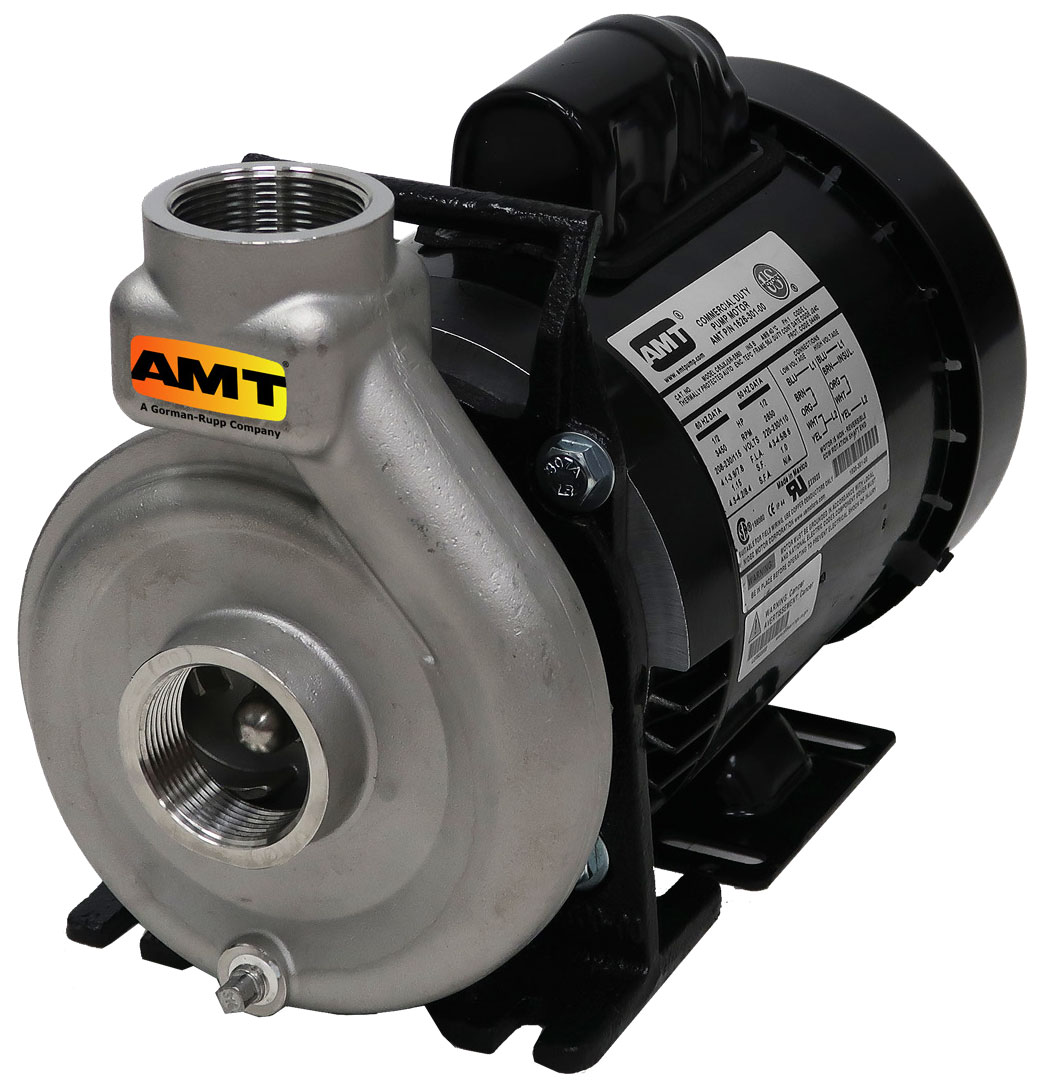

AMT Pump # 388G-98 - Stainless Steel Inline Centrifugal Pump
AMT # 388G-98
AMT catalog # 388G-98, AMT Pump and motor unit # 388G-98 - Stainless Steel Inline Centrifugal Pump and motor unit, with Stainless Steel construction, Stainless Steel impeller, Buna shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 3/4 Horsepower, 1 Phase, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor.
Price : $ 735.00
Product Information :
Parts Page (click here)
Specsheet PDF (view)
The AMT Pump # 388G-98 is an AMT Pump and motor unit # 388G-98 - Stainless Steel Inline Centrifugal Pump and motor unit, with Stainless Steel construction, Stainless Steel impeller, Buna shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 3/4 Horsepower, 1 Phase, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This AMT Stainless Steel Centrifugal pump is designed for use with most gravity fed service applications requiring chemical processing and dirty water transfer. All models are fitted with a self-cleaning stainless steel impeller for maximum 1/8 inch diameter solids handling. This Pump is designed to handle liquids with solids content or dissolved solids and debris. It can handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). Single phase motors are capacitor start and have automatic thermal protection. Check motor wiring before putting unit into operation (see motor nameplate for specific wiring diagrams). This pump is a manual model, no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 388G-98 weighs 47 Lbs.
Features :
Parts and Accessories for AMT model 388G-98
Motor :
Catalog # 1626-302-00, Motor, 3/4 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
Price: $ 442.20
Shaft Seal :
Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 19.80
Impeller :
Catalog # 3880-011-97, 388X Impeller Xss.75HP Subgrp/Kit, Stainless Steel
Price: $ 77.00
Applications
The AMT 388G98 pump is designed for use in gravityfed service applications requiring chemical processing and dirty water transfer; wastewater and effluent management handling liquids with solids content, dissolved solids, or debris, draining sumps, and dewatering operations; industrial and commercial fluid handling transferring compatible chemicals, solvents, and process fluids, supporting washdown systems, and handling general liquid movement tasks; heating, cooling, and circulation recirculating fluids in chillers, cooling towers, and heat exchangers, and supporting closedloop water circulation in HVAC systems; agricultural and irrigation applications moving water for crop irrigation, livestock watering, and drainage systems; and corrosionresistant applications utilizing stainless steel construction to prevent rust and deterioration in harsh or corrosive environments, such as marine, food processing, and chemical industries.
