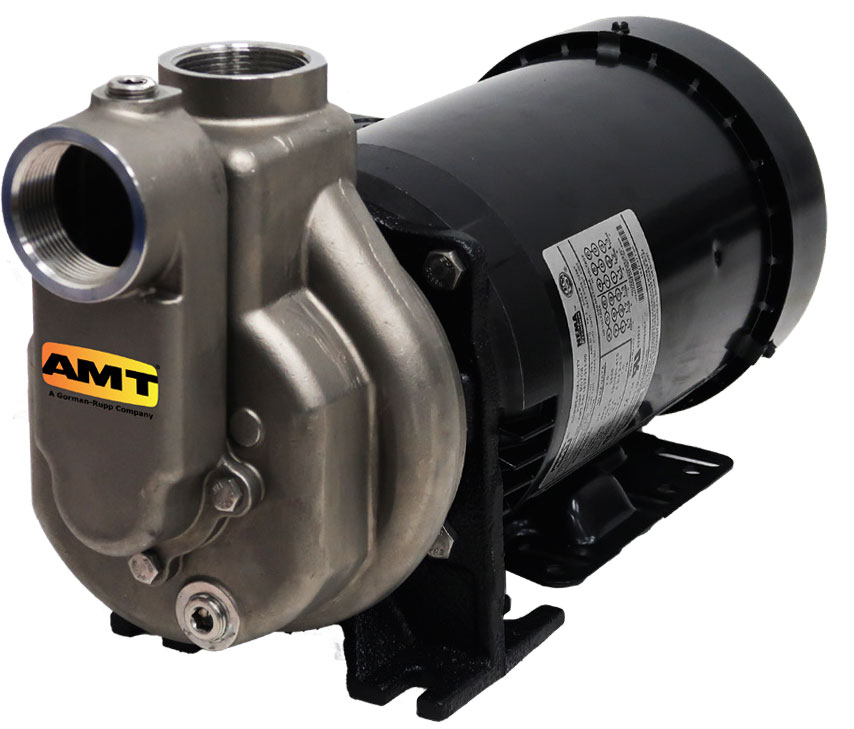

AMT # 3893-98 Stainless Steel Chemical Pump and Motor 1-1/2 HP

The AMT 3893-98 is a Stainless Steel Chemical Pump and Motor unit with a Teflon/SS Shaft Seal, 1-1/2 inch x 1-1/2 inch NPT Ports, coupled to a 1-1/2 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. Stainless steel pumps will handle many acids, alkalis, caustics, solvents, brines and other fluids compatible with 300 series stainless steel body and impeller, and Teflon mechanical seal (comprised of ceramic seat, carbon head and 316 stainless steel spring). Handle liquids from 40 degrees to 250 degrees F (4 degrees to 121 degrees C). These self-priming centrifugal pumps are used for continuous transfer pumping of chemicals from tanks and sumps, and in chemical process and batch lines, waste water treatment and agricultural pumping applications. Pumps self-prime (after filling pump casing) to 6 feet suction lift and will handle liquids with entrapped gases. Maximum viscosity is 100 SSU. Casing working pressure to 75 psi (517 kPa). For use with nonflammable, nonabrasive liquids compatible with pump component materials. All units are for use with non-flammable, non-abrasive liquids compatible with pump component materials.
