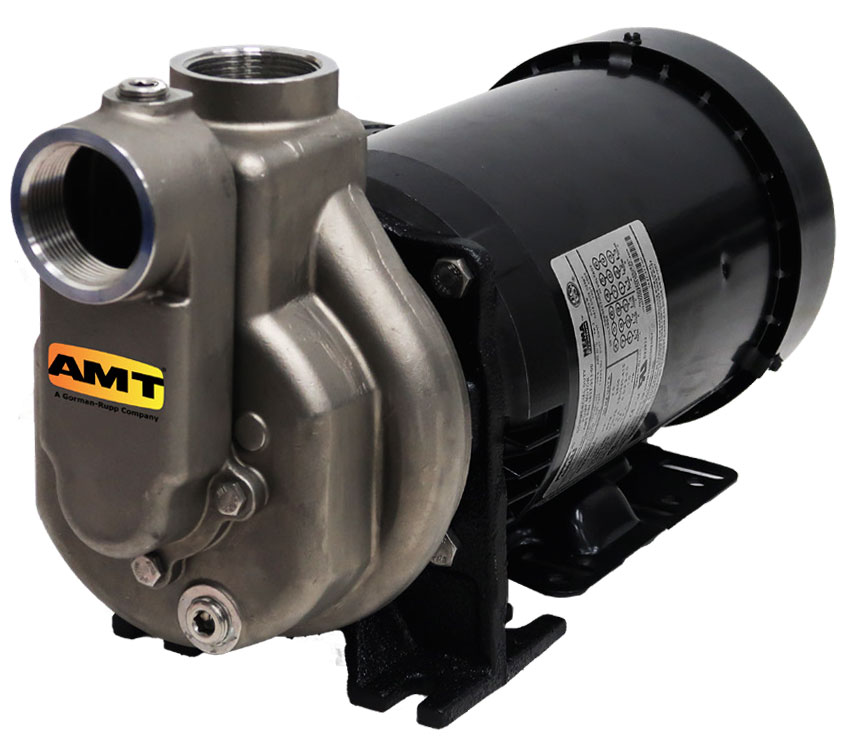

AMT Pump # 3894-98 - Stainless Steel Self-Priming Centrifugal Pump
AMT # 3894-98
AMT catalog # 3894-98, AMT Pump and motor unit # 3894-98 - Stainless Steel Self-Priming Centrifugal Pump and motor unit, with Cast Stainless Steel construction, Stainless Steel impeller, Teflon shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 2 Horsepower, 3 Phase, 230/460 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor.
Price : $ 1617.75
Product Information :
Parts Page (click here)
Specsheet PDF (view)
The AMT Pump # 3894-98 is an AMT Pump and motor unit # 3894-98 - Stainless Steel Self-Priming Centrifugal Pump and motor unit, with Cast Stainless Steel construction, Stainless Steel impeller, Teflon shaft seal, 1-1/2 inch NPT Inlet port, 1-1/2 inch NPT Discharge port, coupled to a 2 Horsepower, 3 Phase, 230/460 Volts, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This self-priming centrifugal pump is used for continuous transfer pumping of chemicals from tanks and sumps, and in chemical process and batch lines, waste water treatment and agricultural pumping applications. This pump will self-prime, after filling pump casing, to 6 feet suction lift, and will handle liquids with entrapped gases. Maximum viscosity is 100 SSU. Casing working pressure is up to 75 psi (517 kPa). This pump will handle liquids from 40 degrees F to 250 degrees F (4 degrees C to 121 degrees C). IMPORTANT : For use with nonflammable, nonabrasive liquids compatible with pump component materials.
WEIGHT : The AMT 3894-98 weighs 56 Lbs.
Features :
Parts and Accessories for AMT model 3894-98
Pump less Motor / Replacement Pumphead :
Catalog # 3894-K8, Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor.
Price: $ 1697.30
Motor :
Catalog # 1627-311-00, Motor, 2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
Price: $ 663.30
Shaft Seal :
Catalog # 1641-162-91, Mechanical Seal, Teflon, Type 9A, size 3/4 Inch
Price: $ 1146.20
Applications
This Stainless steel pump will handle many acids, alkalis, caustics, solvents, brines and other fluids compatible with 300 series stainless steel body and impeller, and Teflon mechanical seal comprised of ceramic seat, carbon head and 316 stainless steel spring. WARNING This unit is for use with nonflammable, nonabrasive liquids compatible with pump component materials.
