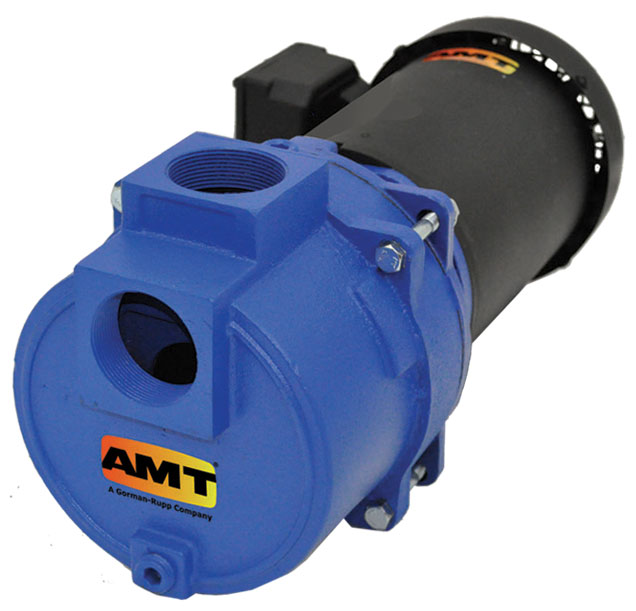

AMT Pump # 393B-95 - Cast Iron Self-Priming Centrifugal Trash Pump

The AMT Pump # 393B-95 is an AMT Pump and motor unit # 393B-95 - Cast Iron Self-Priming Centrifugal Trash Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, Silicon Carbide/Viton shaft seal, 2 inch NPT Inlet port, 2 inch NPT Discharge port, coupled to a 5 Horsepower, 1 Phase, 230 Volts, NEMA 184JM frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This sewage/trash pump is a heavy duty, centrifugal, motor driven, self-priming (to 20 ft. lift) unit, after initially filling casing with liquid. Pump is equipped with a silicon carbide mechanical seal, cast iron wear surfaces and a stainless steel clog-resistant impeller. Units are used to handle water containing sewage, stones, sticks, mud and other solids: maximum diameter is half of the discharge NPT size. This pump can handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C), and is for use only with nonflammable fluids compatible with pump component materials. All units come with built-in suction check valve to aid priming efficiency and easily removable casing/cleanout cover and volute for quick debris clean out. A NPT threaded seal wash port is also provided. Units are powered by totally enclosed fan cooled (TEFC) motors, with stainless steel shaft or stainless steel shaft sleeve.
WEIGHT : The AMT 393B-95 weighs 189 Lbs.
