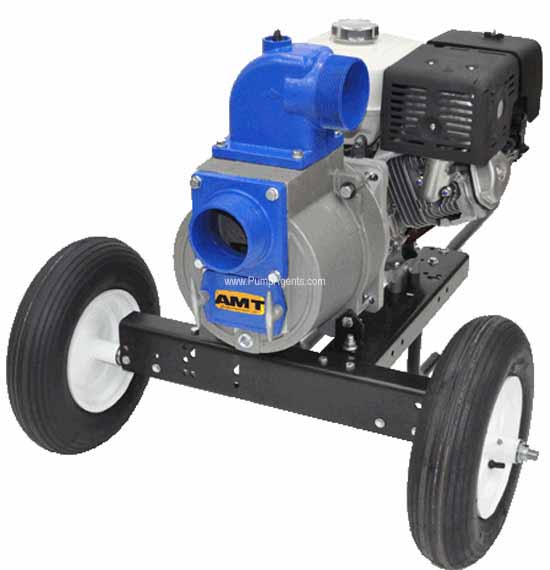

AMT # 3941-96 Cast Aluminum and Iron Self-Priming Trash Pump and Engine 8 HP
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 3941-96 is a Cast Aluminum and Iron Self-Priming Trash Pump and Engine unit with a Cast Iron Impeller, Viton/SIC Shaft Seal, 3 Inch NPT Ports, coupled to a 8 Horsepower, B&S Vanguard Engine. These trash pumps are high capacity, heavy duty, centrifugal, engine driven, self-priming (to 20 ft. lift) portable units. The pumps are equipped with a precision lapped mechanical seal to reduce leakage, carrying handle and a clog-resistant impeller capable of handling solids up to 1-1/2 diameter (up to 25 percent by volume). A 3 NPT suction strainer is included. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable liquids compatible with pump component materials.
Features :
Product Specs :
Cast Iron Male NPT Suction and Discharge Ports
Viton/Silicon Carbide Mechanical Seal
Buna-N O-ring and Casing Seal
Self-primes to 20 Feet with Built-in Buna Check Valve
Stainless Steel Shaft Sleeve
Steel Suction Strainer Included
Cast Iron Replaceable Volute/Wearplate and Impeller
Maximum Temperature 180 degrees F
Maximum Working Pressure 75 PSI
Parts and Accessories for AMT model 3941-96
Impeller :
Catalog # 3590-010-95, 359 Impeller Gf and 496P XCI, Cast Iron
Price: $ 267.30
Shaft Seal :
Catalog # 1640-167-90, Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
Price: $ 176.85
Casing frozen or cracked ? New Pump Casing :
Catalog # 3941-004-96, Casing Xa 3 Inch Trash with Male Suction and Dis Port, Cast Aluminum w/Iron
Price: $ 1125.90
Motor :
Catalog # 1639-024-00, Briggs and Stratton 8HP Vanguard 1 Inch -14 Threaded Shaft Engine
Price: $ 1257.12
Applications
The AMT 394196 Engine Driven Trash pumps are designed for applications which require high flow efficiency and solid handling capability. These pumps are constructed of heavy duty sand cast aluminum components featuring removeable/replaceable cast iron volutes, impellers and wearplates. Simple cleanout design permits easy removal of trash and debris without disconnecting hoses. Cast iron discharge port rotates in 90 degree increments. An electric start option is available on many models.
