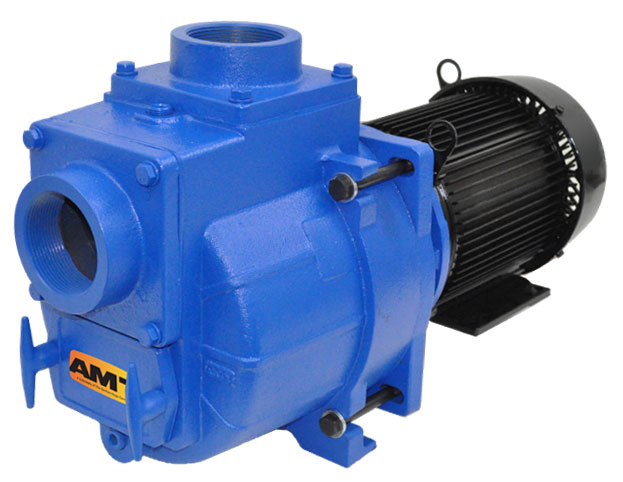

AMT # 394J-95 Cast Iron Self-Priming Trash Pump and Motor 10 HP
AMT # 394J-95
AMT catalog # 394J-95, Self-Priming Trash Pump and Motor unit. Cast Iron Construction with Stainless Steel Impeller and Viton Silicon/Carbide Shaft Seal. Pump is Close Coupled to a 10 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 215JM Frame Electric Motor..
Price : $ 3104.41
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 394J-95 is a Cast Iron Self-Priming Trash Pump and Motor unit with a Stainless Steel Impeller, Viton Silicon/Carbide Shaft Seal, coupled to a 10 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 215JM frame electric Motor. This sewage/trash pump is a heavy duty, centrifugal, motor driven, self-priming (to 20 ft. lift) unit, after initially filling casing with liquid. Pump is equipped with a silicon carbide mechanical seal, cast iron wear surfaces and a stainless steel clog-resistant impeller. Units are used to handle water containing sewage, stones, sticks, mud and other solids: maximum diameter percent the discharge NPT size. Handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C) for use with nonflammable fluids compatible with pump component materials. All units come with built-in suction check valve to aid priming efficiency and easily removable casing/cleanout cover and volute for quick debris clean out.
Features :
Product Specs :
Maximum Temperature 180 degrees F
Self-Priming to 20 Ft.
Cast Iron Construction for Abrasive Resistance and Durability
Silicon Carbide/Viton Mechanical Seal
Built-in Buna-N Check Valve
Buna-N O-ring Casing Seal Reusable After Clean Out Maintenance
Self-Cleaning Stainless Steel Semi-Open Impeller Resists Clogging and Wear
Pull-from-Rear Design Permits Clean Out and Repair Without Removing Piping
Replaceable Cast Iron Volute/Wearplate Designed for Solids Handling
Motor Includes Stainless Steel Shaft or Stainless Steel Shaft Sleeve
Maximum Working Pressure 150 PSI
Parts and Accessories for AMT model 394J-95
Impeller :
Catalog # 394C-010-98, 10HP Impeller Elec Trash Xss, Stainless Steel
Price: $ 545.94
Shaft Seal :
Catalog # 1640-167-90, Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
Price: $ 176.85
Casing frozen or cracked ? New Pump Casing :
Catalog # 394G-001-95, 399 Casing XCI, Cast Iron
Price: $ 1263.60
Motor :
Catalog # 1627-354-00, Motor, 10 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 215JM Frame, replacement electric motor only (pump is not included)
Price: $ 1782.00
Other Parts :
Catalog # 394J-300-90, Buna Gasket/O-Ring
Price: $ 97.20
Applications
The AMT 394J95 Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Cast iron construction with two vane stainless steel selfcleaning impellers, silicon carbide mechanical seals for abrasion resistance and BunaN Orings and check valves. Builtin check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85 percent maximum 15 percent solids. Failure to do so may damage pump and void warranty.
