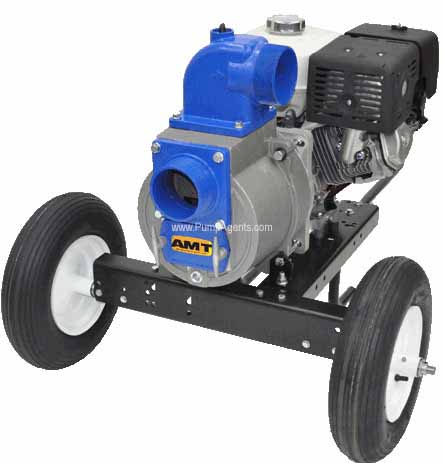

AMT # 3993-96 Cast Aluminum and Iron Engine Driven Trash Pump and Engine 13 HP

AMT Pump 3993-96

AMT # 3993-96

AMT catalog # 3993-96, Engine Driven Trash Pump and Motor unit. Cast Aluminum w/Iron Construction with Cast Iron Impeller and Viton/SIC Shaft Seal. Pump is Close Coupled to a 13 Horsepower, B&S Vanguard Engine Motor..

Price : $ 4643.40

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 3993-96 is a Cast Aluminum and Iron Engine Driven Trash Pump and Engine unit with a Cast Iron Impeller, Viton/SIC Shaft Seal, coupled to a 13 Horsepower, B&S Vanguard Engine. This trash pump is a heavy duty, centrifugal, engine-driven, self-priming (to 20 ft. lift after initially filling casing with liquid) portable unit. Pump is equipped with precision lapped mechanical seal to reduce the likelihood of leakage and a clog-resistant impeller capable of handling solids up to 2 diameter. Units are used to handle water containing stones, sticks, mud and other solids (up to 25 percent by volume). O-ring sealed flange connections facilitate easy removal of suction and discharge lines. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable fluids compatible with pump component materials.

Features :

Pump Body:
Cast Aluminum w/Iron
Impeller:
Cast Iron
Shaft Seal:
Viton/SIC Shaft Seal
Motor Specs :
13 Horsepower, B&S Vanguard Engine.

Product Specs :

Cast Iron Male NPT Suction and Discharge Ports

Viton/Silicon Carbide Mechanical Seal

Buna-N O-ring and Casing Seal

Self-primes to 20 Feet with Built-in Buna Check Valve

Stainless Steel Shaft Sleeve

Steel Suction Strainer Included

Cast Iron Replaceable Volute/Wearplate and Impeller

Maximum Temperature 180 degrees F

Maximum Working Pressure 75 PSI


Parts and Accessories for AMT model 3993-96


Impeller :

Catalog # 3945-013-95, Impeller XCI Shim and Shaft Sleeve Kit, Cast Iron

Price: $ 307.80

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-163-94, Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch

Price: $ 129.60

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 2116-001-96, Casing Xa 4 Inch Trash Kit, Cast Aluminum w/Iron

Price: $ 1321.92

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1639-063-00, Briggs and Stratton Vngrd 295347 Engine 1 Inch -14 Shaft E-Start

Price: $ 3222.18

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 399396 Engine Driven Trash pumps are designed for applications which require high flow efficiency and solid handling capability. These pumps are constructed of heavy duty sand cast aluminum components featuring removeable/replaceable cast iron volutes, impellers and wearplates. Simple cleanout design permits easy removal of trash and debris without disconnecting hoses. Cast iron discharge port rotates in 90 degrees increments.
