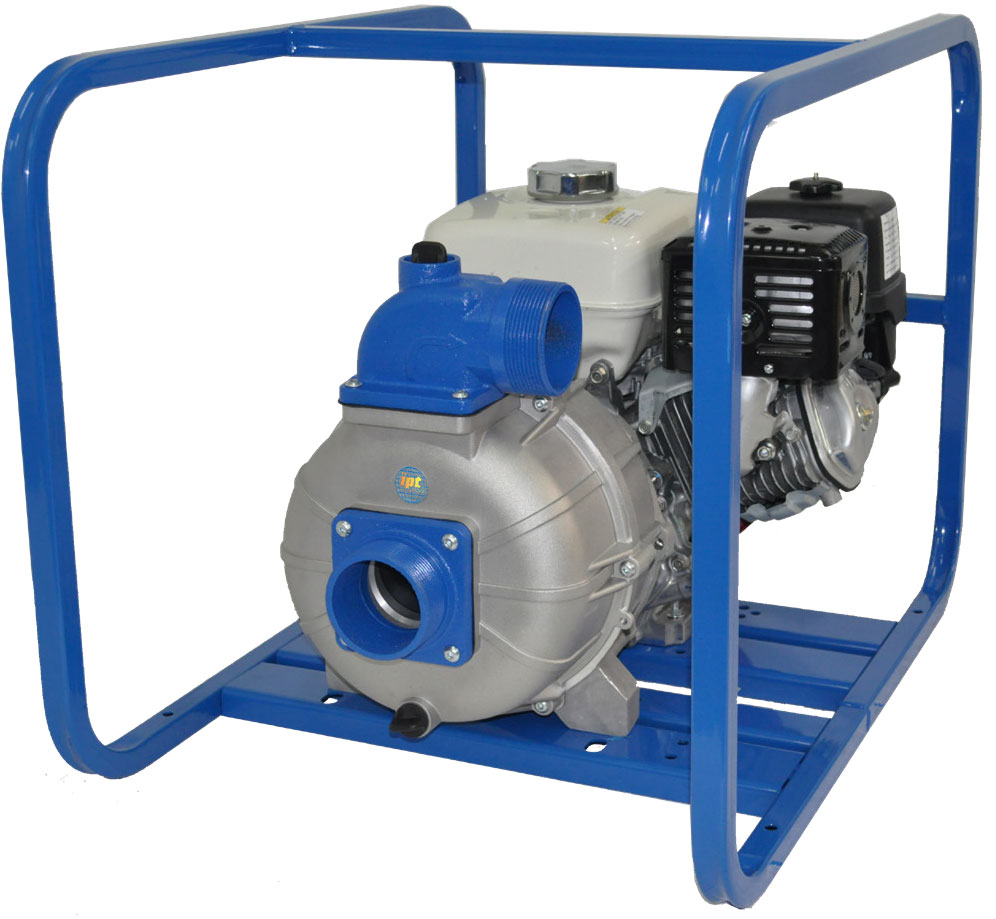

AMT catalog # 3S9XHR, AMT Pump and Engine unit # 3S9XHR - Engine Driven Trash Pump and Engine unit, with Cast Aluminum construction, Cast Iron impeller, Viton/Silicon Carbide shaft seal, 3 inch Inlet port, 3 inch Discharge port, coupled to a 8 HP Horsepower Honda GX270.
Price : $ 2278.50
The AMT Pump # 3S9XHR is an AMT Pump and Engine unit # 3S9XHR - Engine Driven Trash Pump and Engine unit, with Cast Aluminum construction, Cast Iron impeller, Viton/Silicon Carbide shaft seal, 3 inch Inlet port, 3 inch Discharge port, coupled to a 8 HP Horsepower Honda GX270. This engine driven pump is a commercial duty, centrifugal, self-priming (to 25 ft. vertical lift after initially filling casing with liquid), portable unit. The pump is equipped with an industry standard mechanical shaft seal. Iron suction and discharge manifolds are standard male NPT threads for direct connection to swivel hose fitting with gasket, or standard NPT pipe fittings. Discharge manifold can be rotated 180 degrees (in 90 degree increments): left side discharge, front discharge or right side discharge. Pump components will handle liquids with a temperature range of 40 degrees to 180 degrees (4 degrees to 82 degrees C). Pump only nonflammable liquids compatible with pump component materials. IMPORTANT: Not for use with petroleum based liquids.
WEIGHT : The AMT 3S9XHR weighs 145 Lbs.
Pump less Motor / Replacement Pumphead :
Catalog # 3S9X, Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor.
Price: $ 1820.50
Impeller :
Catalog # 3S9X-011-95, Impeller XCI Trash GX270/ 1B40 Subgrp/ Kit
Price: $ 165.00
Shaft Seal :
Catalog # 1646-323-00, T21 1-1/4 Inch Shaft Viton Sic-Sic - SS
Price: $ 134.20
Casing frozen or cracked ? New Pump Casing :
Catalog # 3S5X-005-96, Casing Xa Kit/Subgroup
Price: $ 137.50
