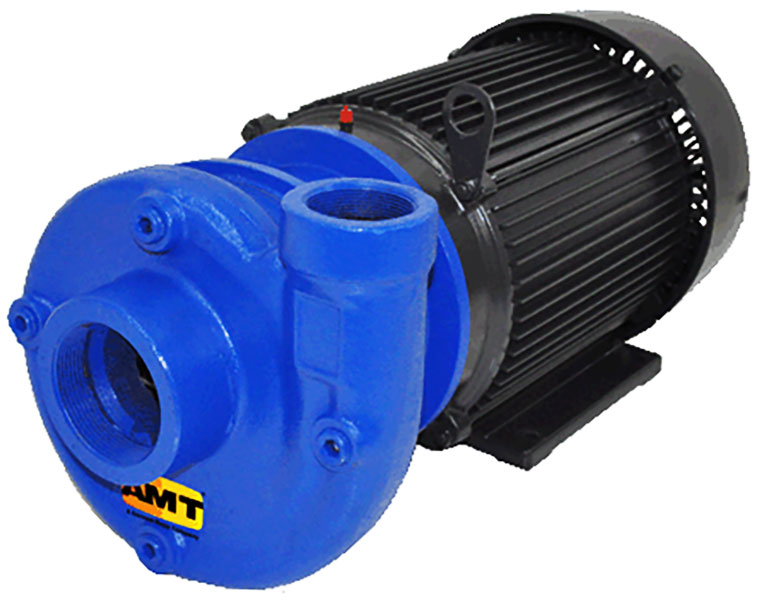

AMT Pump # 4261-95 - Heavy Duty Cast Iron Centrifugal Pump

The AMT Pump # 4261-95 is an AMT Pump and motor unit # 4261-95 - Heavy Duty Cast Iron Centrifugal Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 3 inch NPT Inlet port, 3 inch NPT Discharge port, coupled to a 10 Horsepower, 3 Phase, 230/460 Volts, NEMA 215JM frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This AMT Heavy Duty Solids Handling Centrifugal pump is suited for liquid and chemical transfer, recirculation, booster service, dirty water and other industrial applications. This pump is designed to handle liquids with solids content or dissolved solids and debris. It's semi-open impeller features a self-cleaning ability that makes the unit useful in applications involving up to 1/4" diameter solids and muddy or dirty liquids. A mechanical seal (comprised of carbon, ceramic and stainless steel components) isolates the motor shaft from liquid being pumped. The Discharge port on the pump casing can be rotated in 90 degree increments, with vent and drain plugs for all positions. Buna seals handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). Maximum ambient temperature 104 degrees F (40 degrees C). Casing working pressure to 100 psi (689 kPa). This pump is a manual model, with no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 4261-95 weighs 204 Lbs.
