AMT # 429A-98 Stainless Steel Self-Priming Centrifugal Pump and Motor 1/2 HP
AMT # 429A-98

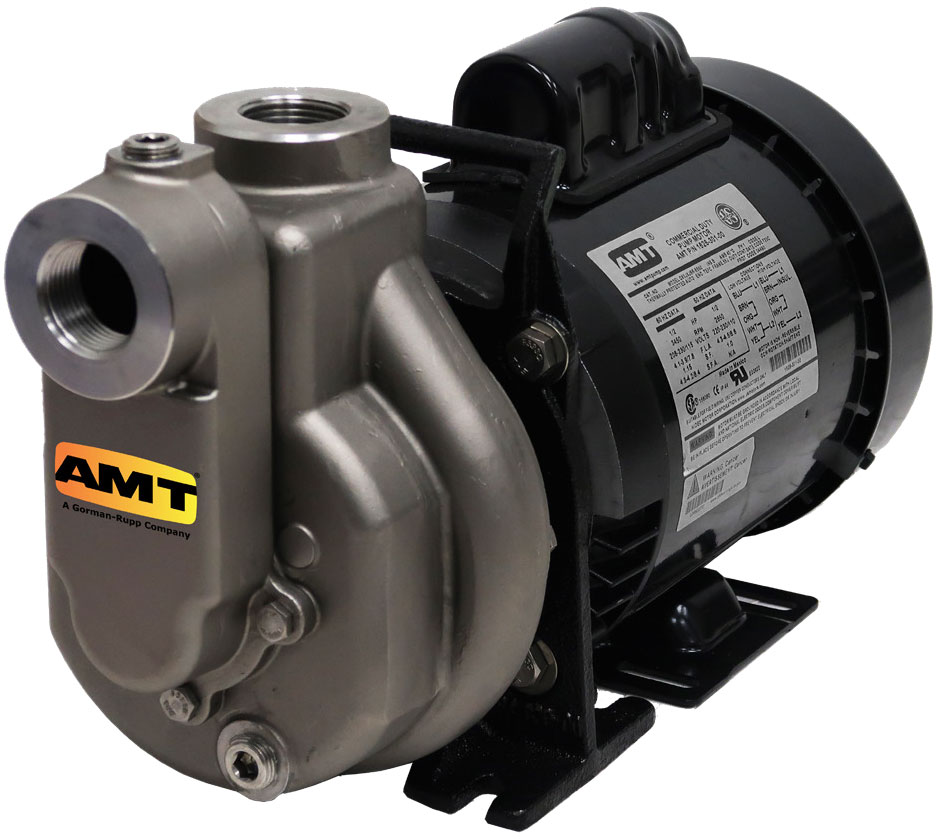

AMT catalog # 429A-98, Stainless Steel Self-Priming Centrifugal Pump and Motor unit. Stn. Steel Construction with Stainless Steel Impeller and Viton/SS Shaft Seal. Pump is Close Coupled to a 1/2 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 1 inch x 1 inch NPT Ports.
Price : $ 1076.01
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 429A-98 is a Stainless Steel Self-Priming Centrifugal Pump and Motor unit with a Stainless Steel Impeller, Viton/SS Shaft Seal, 1 inch x 1 inch NPT Ports, coupled to a 1/2 Horsepower, 115/230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These stainless steel with Viton seal pumps are self-priming (to 6 ft. lift) units designed for transferring perchlorethylene and other non-flammable liquid chemicals. Handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). Units should be used only with non-abrasive, non-flammable liquids that are compatible with pump component materials.
Features :
Product Specs :
300 Series Investment Cast Stainless Steel Construction
Viton Mechanical Seal and O-Ring
Handles Liquids and Chemicals with Specific Gravities up to 1.6
1 Inch NPT Suction and Discharge Ports
Maximum Temperature 200 degrees F
Self-priming to 6 Ft.
Self-Cleaning, Semi-Open Impeller
Parts and Accessories for AMT model 429A-98
Impeller :
Catalog # 4294-010-00, Impeller Xss 0.33HP Mbv to -01, Stainless Steel
Price: $ 90.45
Shaft Seal :
Catalog # 1640-161-91, Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 58.05
Other Parts :
Catalog # 4295-300-90, Viton Gasket/O-Ring Kit
Price: $ 14.85
Applications
The AMT 429A98 300 Series Investment Cast Stainless Steel Transfer pumps are designed to handle liquids and chemicals with specific gravities to 1.6. The pumps are particularly well suited to applications involving perchloroethylene and are recommended for use with nonflammable liquids.
