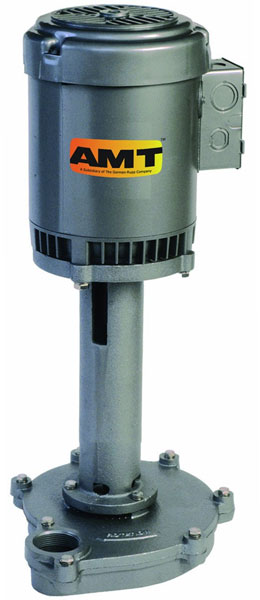

AMT # 4440-95 Cast Iron Industrial Coolant Pump and Motor 3/4 HP
AMT # 4440-95
AMT catalog # 4440-95, Industrial Coolant Pump and Motor unit. Cast Iron Construction with Stainless Steel Impeller and Fiber Gasket Shaft Seal. Pump is Close Coupled to a 3/4 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56C Frame Electric Motor. 1-1/2 Inch Discharge NPT Ports.
Price : $ 705.86
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 4440-95 is a Cast Iron Industrial Coolant Pump and Motor unit with a Stainless Steel Impeller, Fiber Gasket Shaft Seal, 1-1/2 Inch Discharge NPT Ports, coupled to a 3/4 Horsepower, 115/230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56C frame electric Motor. These coolant/recirculating pumps are heavy-duty industrial units designed for a variety of applications involving evaporating coolers, fountains, laboratories, bilge pumping, etc. Each pump is constructed using cast iron column and base parts, stainless steel impeller, shaft and hardware. All units are manual models; no controls are supplied. For use with nonflammable liquids, compatible with pump component materials. A Universal mounting bracket system is included with these pumps.
Maximum Recommended Viscosity: 500 SSU
Features :
Product Specs :
Cast Iron Casing and Column
Includes Universal Mounting Bracket
Self-cleaning, Semi-open Stainless Steel Impeller
Maximum Temperature 200 degrees F
Parts and Accessories for AMT model 4440-95
Motor :
Catalog # 1626-006-00, Motor, 3/4 Horsepower, 1725 RPM, 115/208-230 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, Nema 56C Frame, replacement electric motor only (pump is not included)
Price: $ 601.02
Applications
The AMT 444095 Heavy Duty Industrial Coolant pump has been designed for a broad range of Industrial/Commercial coolant and recirculating applications.
