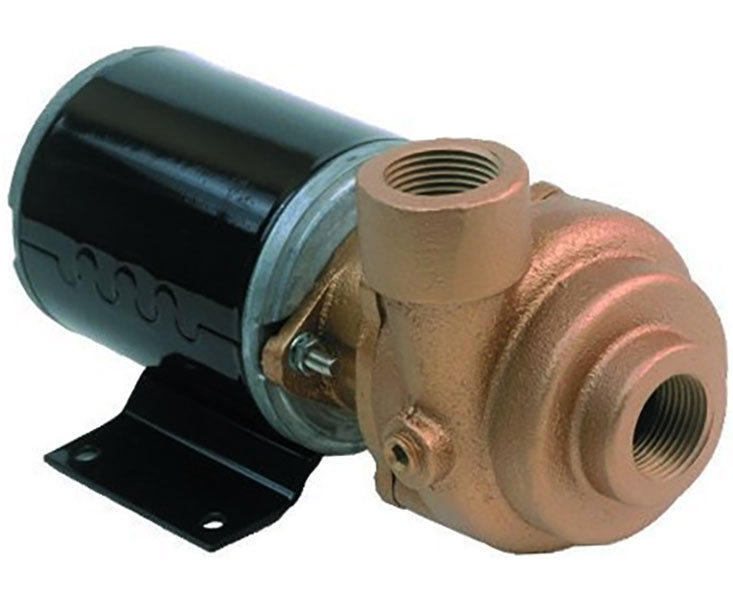

AMT catalog # 4861-97, AMT Pump and motor unit # 4861-97 - Bronze Marine Centrifugal Pump and motor unit, with Bronze construction, Bronze impeller, Buna shaft seal, 3/4 inch NPT Inlet port, 3/4 inch NPT Discharge port, coupled to a 1/8 Horsepower, 3700 RPM, 12 Volts DC, TENV (Totally Enclosed Non Ventilated) Electric Motor.
Price : $ 320.25
The AMT Pump # 4861-97 is an AMT Pump and motor unit # 4861-97 - Bronze Marine Centrifugal Pump and motor unit, with Bronze construction, Bronze impeller, Buna shaft seal, 3/4 inch NPT Inlet port, 3/4 inch NPT Discharge port, coupled to a 1/8 Horsepower, 3700 RPM, 12 Volts DC, TENV (Totally Enclosed Non Ventilated) Electric Motor. This Bronze Centrifugal pump is compact and designed for use in general dewatering, salt water applications in live well tanks, circulation and chemical transfer. This Pump is NOT self-priming and require flooded suction. This compact utility pump is designed for a wide range of dewatering and liquid transfer applications including marine and aquaculture. It handles liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). This pump is a manual model, with no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 4861-97 weighs 7 Lbs.
Motor :
Catalog # 1626-023-00, Motor, 0.13 Horsepower, TENV, 60/50 Hz, Nema 56J Frame, replacement electric marine duty motor only (pump is not included)
Price: $ 168.30
Shaft Seal :
Catalog # 1641-051-90, Mechanical Seal, Buna-N, Type 6A, size 1/2 Inch
Price: $ 46.20
Impeller :
Catalog # 4861-010-97, Mechanical Seal, Type 6A, size
Price: $ 44.00
Casing frozen or cracked ? New Pump Casing :
Catalog # 4860-001-97, Casing Xb 3/4X3/4 Non-S-Prime
Price: $ 209.00
