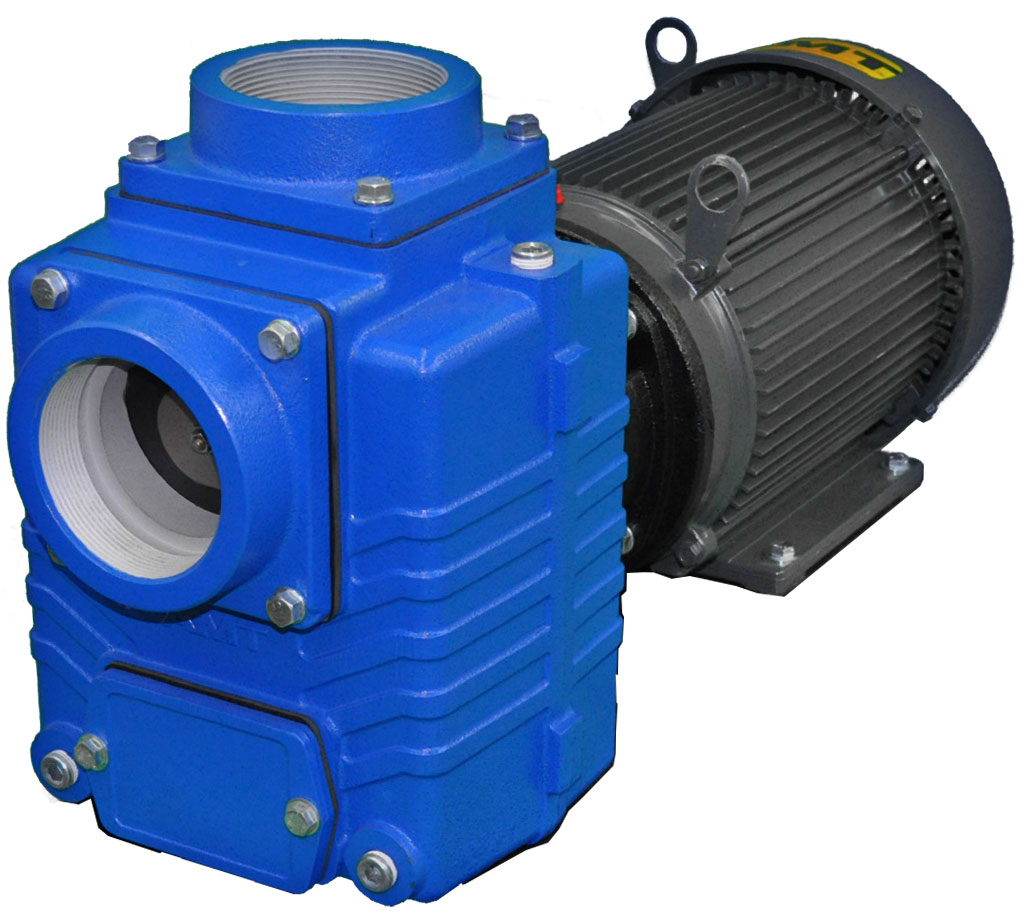

AMT Pump # 4871-95 - Cast Iron Self-Priming Centrifugal Pump

The AMT Pump # 4871-95 is an AMT Pump and motor unit # 4871-95 - Cast Iron Self-Priming Centrifugal Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 4 inch NPT Inlet port, 4 inch NPT Discharge port, coupled to a 10 Horsepower, 3 Phase, 208-230/460 Volts, NEMA 215JM frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This centrifugal pump is self-priming up to 20 a foot lift. This pump is designed for high volume liquid transfer - irrigation, de-watering, lawn sprinkling, etc. This unit can also accommodate semi-solids up to 3/8 inch diameter, sediment laden liquids, and liquids with entrained air or gases. It's maximum casing working pressure is up to 125 psi (862 kPa). The pump is equipped with a cast iron pump casing designed with a full dual volute, clog resistant semi-open stainless steel impeller, and a cast iron adapter. A mechanical seal isolates the motor from the liquid in the pump casing. It is equipped with flapper valves to ensure a positive prime. The pump is coupled to a 3450 RPM, totally enclosed fan cooled motor. This pump is a manual model, and no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 4871-95 weighs 290 Lbs.
