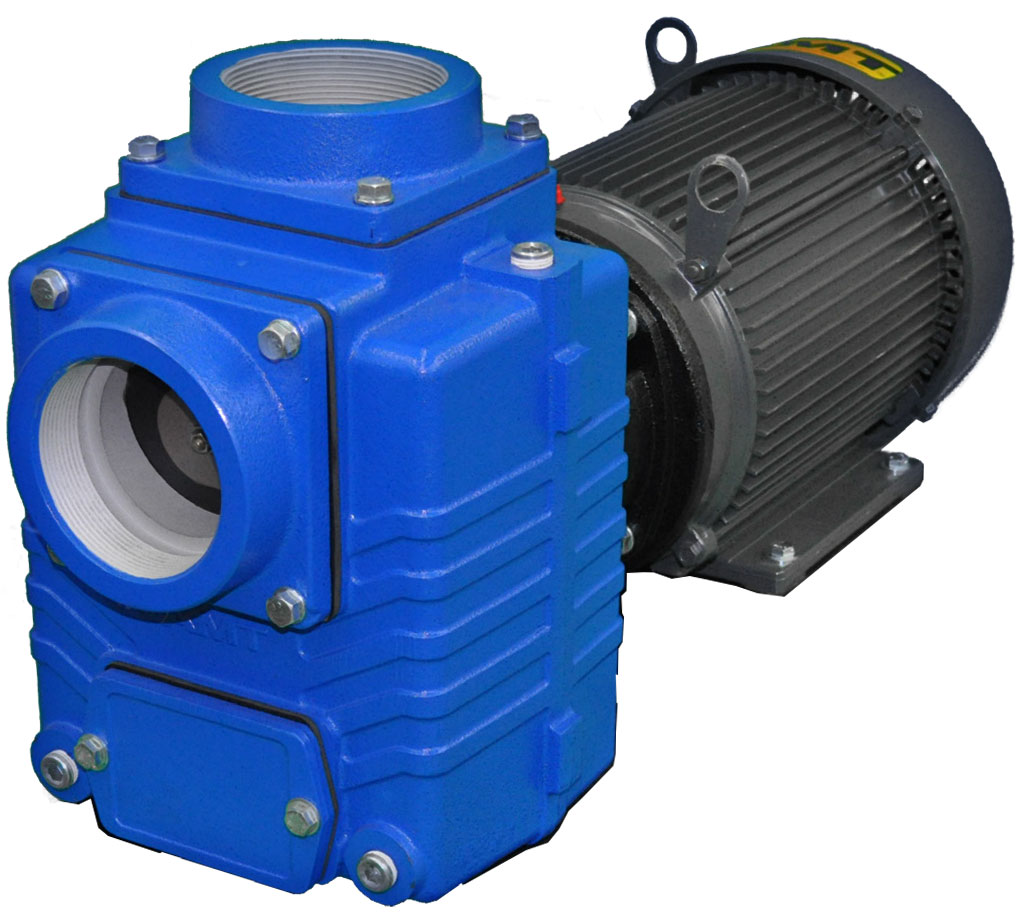

AMT # 4873-95 Cast Iron Self-Priming Centrifugal Pump and Motor 10 HP

AMT Pump 4873-95

AMT # 4873-95

AMT catalog # 4873-95, Self-Priming Centrifugal Pump and Motor unit. Cast Iron Construction with Buna-N Impeller and Buna-N/SS Shaft Seal. Pump is Close Coupled to a 10 Horsepower, 230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 215JM Frame Electric Motor..

Price : $ 3293.36

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 4873-95 is a Cast Iron Self-Priming Centrifugal Pump and Motor unit with a Buna-N Impeller, Buna-N/SS Shaft Seal, coupled to a 10 Horsepower, 230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 215JM frame electric Motor. These centrifugal pumps are self-priming (to 20 ft. lift) units designed for high volume liquid transfer - irrigation, de-watering, lawn sprinkling, etc. These units can also accommodate semi-solids (up to 3/8 diameter), sediment laden liquids and liquids with entrained air or gases. Casing working pressure to 125 psi (862 kPa). The units are equipped with a cast iron pump casing designed with a full dual volute, clog resistant semi-open stainless steel impeller and a cast iron adapter. Units are equipped with flapper valves to ensure a positive prime. A mechanical seal isolates the motor from the liquid in the pump casing. The units are coupled to 3450 RPM, totally enclosed fan cooled motors. All units are manual models, no controls are supplied. For use with nonflammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron
Impeller:
Buna-N
Shaft Seal:
Buna-N/SS Shaft Seal
Motor Specs :
10 Horsepower, 230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 215JM Frame Electric.

Product Specs :

Cast Iron Construction with Stainless Steel Impeller

Buna-N Mechanical Seal and O-ring

Optional Viton Mechanical Seal and Flapper Valve Available

Optional Silicon Carbide Seal Available

4 Inch NPT Suction and Discharge Ports

Stainless Steel Sleeve

Dual Volute Design Reduces Radial Load on Motor

Fill and Drain Plug for Easy Servicing

Maximum Working Pressure 125 PSI

Maximum Temperature 180 degrees F

Self-cleaning, Semi-open Impeller


Parts and Accessories for AMT model 4873-95


Impeller :

Catalog # 4871-010-98, Impeller Xss 10HP, Buna-N

Price: $ 578.34

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-163-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 21, size 1-1/8 Inch

Price: $ 44.55

Qty :

Can Ship : Same Day (3 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 4870-001-95, Casing XCI 4X4, Cast Iron

Price: $ 1053.00

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1626-080-00, Motor, 10 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60 Hz Nema 215JM Frame, 60HZ Nema 215JM Frame, replacement electric motor only (pump is not included)

Price: $ 3222.18

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 487395 SelfPriming Cast Iron Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with selfcleaning, semiopen stainless steel impeller, which can handle 1/2 Inch diameter semisolids. Builtin check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing.
