AMT catalog # 4S13XAR, Aluminum Trash Pump and Motor unit. Cast Aluminum Construction with Cast Iron Impeller and Viton/Silicon Carbide Shaft Seal. Pump is Close Coupled to a 13 Horsepower, B & S Vanguard V-Twin Engine Motor..
Price : $ 4443.68

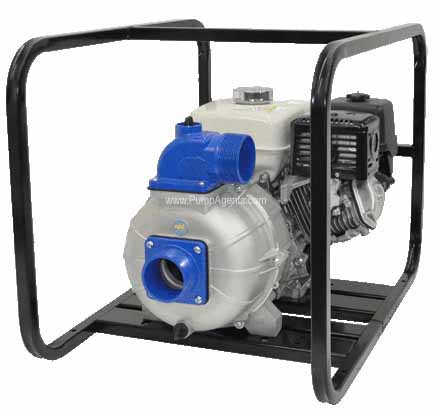

The AMT 4S13XAR is a Cast Aluminum Trash Pump and Engine unit with a Cast Iron Impeller, Viton/Silicon Carbide Shaft Seal, coupled to a 13 Horsepower, B and S Vanguard V-Twin Engine. This trash pump is a heavy duty, centrifugal, engine-driven, self-priming (to 20 ft. lift after initially filling casing with liquid), portable unit. Pump is equipped with precision lapped mechanical seal to reduce the likelihood of leakage, and a clog-resistant impeller capable of handling solids, 4" models up to 2" diameter. Units are used to handle water containing stones, sticks, mud and other solids (up to 25 percent by volume). Sealed flange connections facilitate easy removal of suction and discharge lines. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable fluids compatible with pump component materials.
Cast Iron Impeller
Silicon Carbide Mechanical Seal with Graphite Impregnated Seat and Viton Elastomers
Heavy Duty Steel Roll Frame and Strainer Included
Built-in Check Valve
Removable/Replaceable Cast Iron Suction/ Discharge Ports
Discharge Port Rotates in 90 degrees Increments
Vibration Dampening Feet
Maximum Temperature 180 degrees F
Impeller :
Catalog # 3920-010-95, Impeller XCI 13HP 1 Inch -14 Threaded Kit /Subgrp, Cast Iron
Price: $ 330.48
Shaft Seal :
Catalog # 1640-163-94, Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch
Price: $ 129.60
Casing frozen or cracked ? New Pump Casing :
Catalog # 2116-001-00, 3990 Xa 4IN Casing, Cast Aluminum
Price: $ 1321.92
Motor :
Catalog # 1639-005-00, Vanguard 305447 1 Inch Threaded Shaft Vtwin Engine
Price: $ 3520.26
The AMT 4S13XAR Portable High Volume, Selfpriming Centrifugal Trash pumps include easy cleanout with replaceable cast iron impeller and volute that resist abrasion/wear. All pumps feature aluminum housing, cast iron wearparts, builtin check valve, suction strainer and heavy duty steel roll frame. Heavy duty cast iron flanges with male NPT threads that rotates in 90 degrees increments. Easy access fill plug on discharge port.
