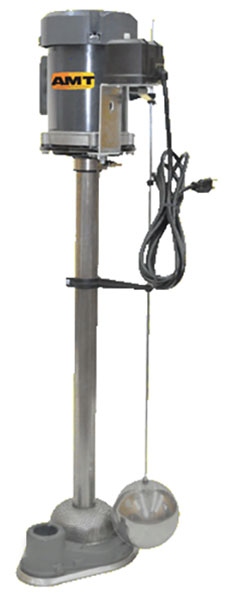

AMT # 523D-98 Stainless Industrial Sump Pump and Motor 1/2 HP
AMT # 523D-98
AMT catalog # 523D-98, Industrial Sump Pump and Motor unit. Stainless Construction. Pump is Close Coupled to a 1/2 Horsepower, 115 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. 1-1/2 inch Discharge NPT Ports.
Price : $ 946.07
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 523D-98 is a Stainless Industrial Sump Pump and Motor unit with a EPDM/EPR Shaft Seal, 1-1/2 inch Discharge NPT Ports, coupled to a 1/2 Horsepower, 115 Volts, TEFC Totally Enclosed Fan Cooled Motor. These upright sump pumps are used for drainage in industrial, residential and commercial settings. Units are completely assembled (except for float assembly) and equipped with open type impellers, TEFC motor with switch and grounding-type power cord. Handles liquids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). For use with non-flammable, non-abrasive liquids compatible with pump component materials.
Features :
Product Specs :
Stainless Steel Screen and Float
Semi-Open, Clog Resistant Impellers
8 Ft. 16/3 115 VAC Line Cord
Stainless Steel Shaft
Carbon Bearings
Maximum Temperature 200 degrees F
Solids Handling Design up to 3/4 Inch Diameter
Parts and Accessories for AMT model 523D-98
Impeller :
Catalog # 5233-011-98, Impeller 1/2HP Xss
Price: $ 119.88
Motor :
Catalog # 523C-350-90, Motor, Kit 1/2 Horsepower 1PH, 115 Volts, 50/60 Hz Premium Efficient, Ecm Nema 48C Frame, replacement electric motor only (pump is not included)
Price: $ 615.60
Other Parts :
Catalog # 5460-000-00, Switch - for Sump Pump
Price: $ 103.68
Applications
The AMT 523D98 Industrial/Commercial Sump pumps are designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT Sump pumps are available in stainless steel, bronze and cast iron constructions with TEFC motors in 1/3 through 3/4 HP for proper pump selection in most applications. All models include stainless steel shaft, screen and float. All motors are fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. Pumps require minimum sump pit of 14 Inch diameter and 24 Inch depth.
