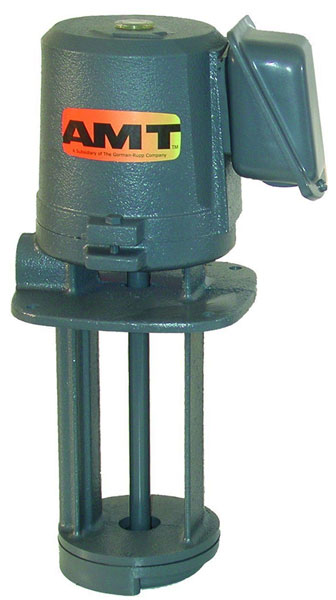

AMT Pump # 5381-95 - Immersion Coolant Pump
AMT # 5381-95
AMT catalog # 5381-95, AMT Pump and motor unit # 5381-95 - Immersion Coolant Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, 3/8 inch NPT Discharge port, coupled to a 1/8 Horsepower, 3450 RPM, 3 Phase, 230/460 Volts Electric Motor.
Price : $ 221.25
Product Information :
Parts Page (click here)
Product Manual PDF (view)
The AMT Pump # 5381-95 is an AMT Pump and motor unit # 5381-95 - Immersion Coolant Pump and motor unit, with Cast Iron construction, Stainless Steel impeller, 3/8 inch NPT Discharge port, coupled to a 1/8 Horsepower, 3450 RPM, 3 Phase, 230/460 Volts Electric Motor. These coolant pumps are the ideal replacement pumps for installation on machine tools. All units have cast iron construction, and feature stainless steel impellers. Pumps are equipped with a 3450 RPM motor with permanently lubricated bearings. They handle liquids with a maximum specific gravity of 1.0, maximum viscosity of 550 SSU, and maximum temperature of 180 degrees F. For use with non-flammable liquids compatible with pump component materials. The motor on these pumps is not intended to be submersed in liquid. Immersion-type pumps do not require priming and can be run dry. This pump is a drop-in coolant pump replacement for a Fuji VKP-053A and VKN-051A, Mitsubishi, NQ-60J, Toshiba, 0PF-60M, Hitachi CPD-60M, Yasukawa VFPC-061DIF, Graymills IMV-08, and Gusher VBV-18.
WEIGHT : The AMT 5381-95 weighs 15 Lbs.
Features :
Parts and Accessories for AMT model 5381-95
Applications
This pump is designed for circulating coolant and spraying of cutting oil in all machines, including grinders. Immersiontype pumps must be installed with the liquid level at least 1 inch below the motor bottom. These pumps are designed to drain away any liquid leaking past the shaft seal, to protect the motor. Provisions must be made to dispense any possible overflow.
