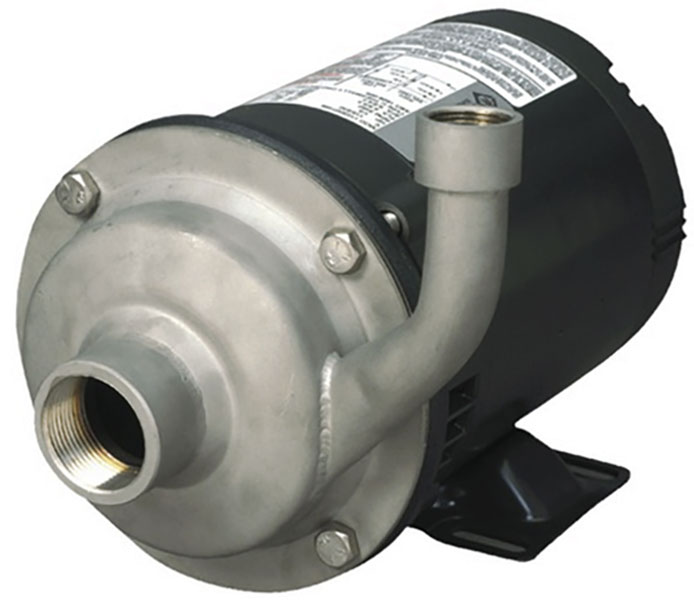

AMT # 5481-98 Stainless Steel Centrifugal Pump and Motor 1 HP

The AMT 5481-98 is a Stainless Steel Centrifugal Pump and Motor unit with a Stainless Steel Impeller, Viton Shaft Seal, 1-1/2 inch x 1-1/4 inch NPT Ports, coupled to a 1 Horsepower, 115/230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These centrifugal pumps are non-self priming (gravity feed) units designed for continuous duty liquid transfer and re-circulation. Pumps are intended for use with clear, non-abrasive, non-flammable liquids compatible with pump component materials. Handle liquids from 40̊ to 200̊ F (4̊ to 93̊ C) with standard Viton seals; 40̊ to 180̊ F (4̊ to 82̊ C) with optional Buna-N seals. Wetted parts include: Stainless Steel impeller and impeller nut; Stainless Steel casing and casing cover; Type 21 mechanical shaft seal comprised of carbon, ceramic and stainless steel components; and Viton seals (Buna-N seals Optional). High head units also include wetted Stainless Steel motor shaft. The discharge port on all models can be rotated 360̊ in 90̊ increments to accommodate specific applications. Motorized units are direct coupled to a 3450 RPM motor. All models are manual mode and require field wiring, no controls are supplied. Check motor wiring before putting unit into operation (see motors nameplate for specific wiring diagram).
