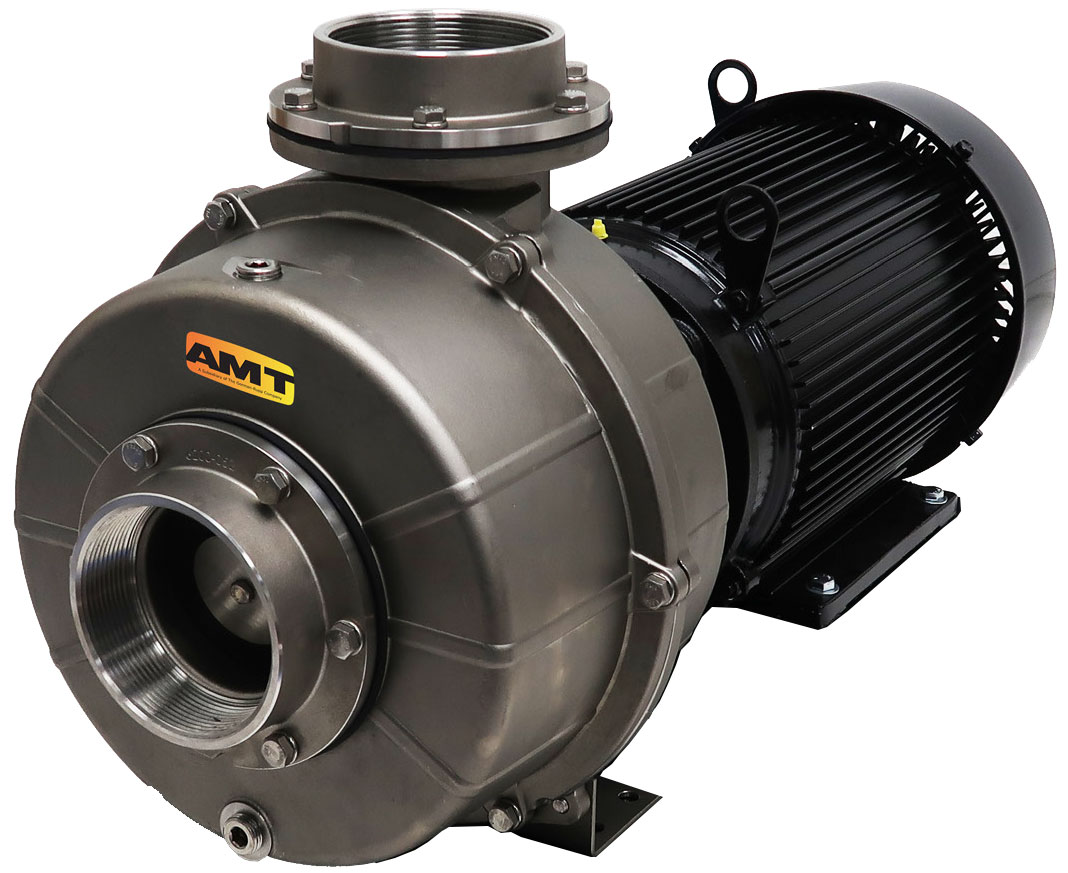

AMT Pump # 6210-98 - Stainless Steel Self-Priming Pump
AMT # 6210-98
AMT catalog # 6210-98, AMT Pump and motor unit # 6210-98 - Stainless Steel Self-Priming Pump and motor unit, with Cast Stainless Steel construction, Stainless Steel impeller, Viton shaft seal, 4 inch NPT Inlet port, 4 inch NPT Discharge port, coupled to a 10 Horsepower, 3 Phase, 230/460 Volts, NEMA 215JM frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor.
Price : $ 4765.50
Product Information :
Parts Page (click here)
Specsheet PDF (view)
The AMT Pump # 6210-98 is an AMT Pump and motor unit # 6210-98 - Stainless Steel Self-Priming Pump and motor unit, with Cast Stainless Steel construction, Stainless Steel impeller, Viton shaft seal, 4 inch NPT Inlet port, 4 inch NPT Discharge port, coupled to a 10 Horsepower, 3 Phase, 230/460 Volts, NEMA 215JM frame, TEFC (Totally Enclosed Fan Cooled) Electric Motor. This centrifugal pump is self-priming up to 20 foot lift when primed. This unit is used for high volume liquid transfer, can handle sediment laden liquids, and can accommodate solids up to 3/8 inch diameter. This pump is equipped with a cast stainless steel casing, bracket, seal plate, removable volute, clog resistant semi-open impeller and a cast iron motor adapter. It is also equipped with a suction check valve to ensure self-priming, and a mechanical seal isolates the motor from the liquid in the pump casing. The maximum casing working pressure to 100 psi (690 kPa). This pump is direct coupled to a 3450 rpm NEMA JM shaft, totally enclosed fan cooled motor. This pump is a manual model, with no controls are supplied. IMPORTANT : For use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 6210-98 weighs 213 Lbs.
Features :
Parts and Accessories for AMT model 6210-98
Motor :
Catalog # 1627-354-00, Motor, 10 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 215JM Frame, replacement electric motor only (pump is not included)
Price: $ 1606.00
Shaft Seal :
Catalog # 1646-324-00, Mechanical Seal, Viton/Carbon/Carbide, Type 31, size 1-1/2 Inch
Price: $ 211.20
Impeller :
Catalog # 6210-010-98, IMPELLER 10HP XSS SUBGROUP
Price: $ 207.90
Applications
Typical applications for the AMT 621098 pump include general water transfer moving water from tanks, ponds, or reservoirs, filling and emptying pools, cisterns, or storage units, and agricultural water movement and irrigation; industrial and commercial fluid handling circulating or transferring compatible chemicals, solvents, and process fluids, washdown systems, and booster pump applications; heating, cooling, and circulation recirculating fluids in chillers, cooling towers, and heat exchangers, closedloop water circulation, and HVAC system support; mild chemical transfer handling waterlike fluids with minimal solids, suitable for noncorrosive or lightly corrosive liquids depending on the pumps material of construction; and spraying and washdown agricultural spraying setups for light chemicals or waterbased mixes, equipment cleaning, and general washdown activities.
