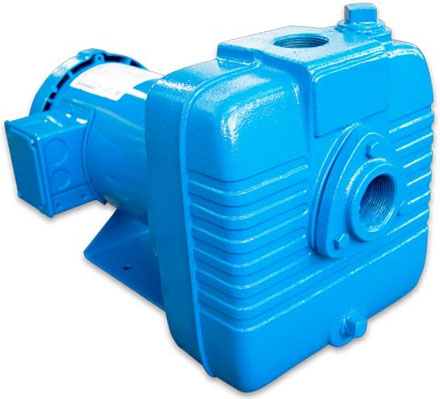

Barnes # 3CCE-1 Self-Priming Centrifugal Pump 1-1/2 HP

Barnes Pump 3CCE-1

Barnes # 3CCE-1

Barnes catalog # 3CCE-1, Self-Priming Close Coupled Centrifugal Pump, Cast Iron construction, Cast Iron impeller, Buna/Carbon/Ni-Resist Mechanical seal. Motor is 1-1/2 Horsepower, 115/230 Volts, Single Phase, ODP (Open Drip Proof). Inlet Port is 1-1/2 inch, Discharge Port is 1-1/2 inch FNPT.



Product Information :

The Barnes 3CCE-1 is a Cast Iron Self-Priming Close Coupled Centrifugal Pump, with Cast Iron Impeller, Buna/Carbon/Ni/Resist Mechanical Seal, 1-1/2 inch by 1-1/2 inch FNPT Ports, close coupled to a 1-1/2 Horsepower, 115/230 Volts, single phase, ODP (Open Drip Proof) Motor. This self-priming pump is designed to meet a broad range of general and special industrial applications. These pumps feature a self-cleaning, Semi-Open, Dynamically Balanced, ISO G6.3 clog resistant impeller capable of handling up to 5/16 inch diameter semi-solids. The shaft is Stainless Steel. A Built-in flapper/check valve enables fast consistent self-priming to 20 feet. They are direct coupled to NEMA 56J frame, 3450 RPM motors which require field wiring, no controls are supplied. Each pump is equipped with a flapper valve to shorten re-prime time after initially filling casing with liquid. Handles liquids from 40 degrees F to 160 degrees F (4 degrees C to 71 degrees C). IMPORTANT : For use with nonflammable liquids compatible with pump component materials.
WEIGHT : The Barnes 3CCE-1 weighs 84 Lbs.

Features :

Pump Body:
Cast Iron
Impeller:
Cast Iron
Shaft Seal:
Buna/Carbon/Ni-Resist Mechanical seal
Port Size:
Inlet Port is 1-1/2 inch, Discharge Port is 1-1/2 inch FNPT.
Motor Specs :
1-1/2 Horsepower, 115/230 Volts, Single Phase, ODP (Open Drip Proof).

Applications

The Barnes 3CCE1 SelfPriming Centrifugal pump is designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and processing, irrigation, dewatering, lawn sprinkling, etc. There are many applications that the Barnes 3CCE1 are used in. Typical applications are Marine Duty, Bilge and Balast, General Industrial, Chemicals, Petroleum Solvents, Lawn Sprinkling, Pressure Boosting, Light Irrigation, and General Dewatering. It is designed to handle liquids with solids content or dissolved solids and debris. These pumps can also accommodate semisolids up to 5/16 inch diameter, sediment laden liquids, and liquids with entrained air or gases. Pump should not be operated without a suction strainer to prevent foreign matter from being drawn into impeller.
