Burks # 3CR6M Turbine Pump and Motor 1/3 HP
Burks # 3CR6M

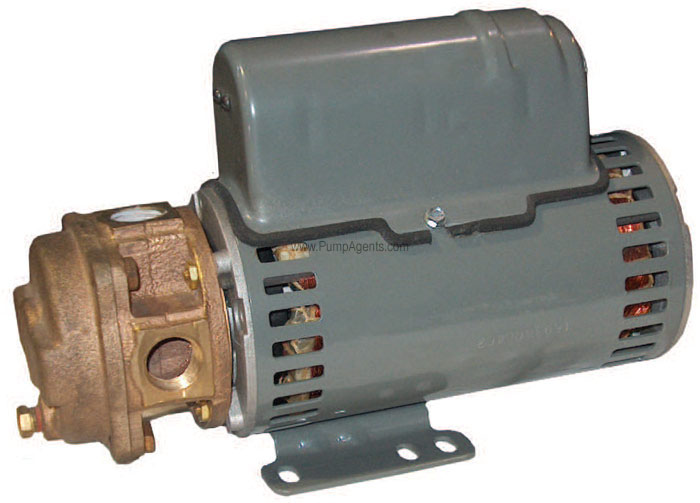

Burks catalog # 3CR6M, Turbine Pump and Motor and Motor unit. Bronze Construction, with a Bronze Impeller and Buna/N/Carbon/Ceramic/SS Mechanical Seal. Pump is close coupled to a 1/3 Horsepower, 3500 RPM, 230 Volts, Single Phase Motor. Ports are 1/2 Inch NPT Inlet, 1/2 Inch NPT Outlet.
Price : $ 2619.61
Product Information :
Parts Page (click here)
Product Manual PDF (view)
The Burks 3CR6M is a Bronze Turbine Pump and Motor with a Bronze Impeller, Buna-N/Carbon/Ceramic/SS Mechanical Seal, 1/2 Inch NPT Inlet, 1/2 Inch NPT Outlet Ports, close coupled to a 1/3 Horsepower, 3500 RPM, 230 Volts, 1 Phase, 60Hz Motor. This pump has a maximum performance of up to 2. 9 gallons per minute water flow at 175 feet of head (75 PSI). The motor on this pump has ball bearing construction and an open ventilated enclosure which is NOT drip-proof. It is rated for continuous duty operation at all ratings shown, and furnished with a UL Recongnized motor lead. The operating temperature limits for this All Bronze pump with the Buna-N seal is 225 degrees F (107 degrees C). Bronze pumps are suitable for most common liquids in the pH range from 4-11. This compact turbine pump is designed for pumping clear water and many other nonabrasive, lower viscosity liquids on high pressure, low capacity applications with the greatest possible efficiency. The Bronze impeller with Monel blades is the only moving part and the Bronze raceway with cast-in vortex pockets will not vapor lock. This pump's unique design is engineered for many applications requiring higher pressures and lower capacities impossible for other single stage pumps of a similar size, and the pump's compact space-saving size without a coupling eliminates misalignment problems. The pump shaft seal is a mechanical seal with ceramic seat and carbon seal face for maximum durability, and long trouble-free service. While this pump can be run dry for short periods of time, a lack of liquid will damage the Mechanical seal. The wetted material in contact with the liquid are Bronze, 303 Stainless Steel, and Buna-N. The dimensions of this pump are 10-1/2 inches long, 6-1/4 inches high, and 4 inches wide.
WEIGHT : This pump and motor unit weighs 17 Lbs.
NOTE: A strainer, approximately 20 mesh, should be installed on the suction side of the pump to prevent chips, scale or hard foreign particles from entering the pump and damaging the raceway and impeller.
Features :
Product Specs :
Raceway Sealing grooves, machined into the face of the raceway, match the impeller sealing grooves, minimizing water slippage and increasing delivery efficiencies.
Impeller Annular grooves or sealing rings, machined into the face of the impeller are perfectly matched with corresponding grooves in the raceway and intermesh without metal-to-metal contact to form a labyrinth seal.
Parts and Accessories for Burks model 3CR6M
Applications
Designed for versatile, high performance applications these Burks CR series Turbine Pumps are designed for pumping any clean, noncorrosive, nonabrasive lower viscosity liquid on low flow, highhead applications. They are used is a wide range of industries on applications such as SemiConductor Manufacturing applications, Carpet Cleaning Machines, Small Steam Generators, Solar Heating Systems, Booster Pump, Injector Venturi Operation, Cleaning and Flushing, Low Flow Circulating, Spray Nozzles, Liquid Transfer, Coolant Pump, and Aeration applications. These are just a few of the most common applications. The durable materials of construction, long service life, and low maintenance design make the Burks CR Turbine Pump an excellent choice for numerous clean water applications. These pumps are designed for low maintenance and long service life. To operate the pump the raceway conducts fluid into the impeller and then provides a channel for the liquid to move as it is propelled and energized by the impeller. The Burks Regenerative Turbine Pump is unique in design and is engineered for high pressure, low flow applications. Burks Turbine Pumps are of the positive displacement type. When the pump is operating, liquid will be delivered to the discharge side of the pump. If the discharge line is blocked or closed, pressure will build up until the motor stalls, a pump part breaks or the piping bursts. To prevent the possibility of equipment damage or personal injury, a pressure relieving device of adequate size must be incorporated in the discharge side of the system. NOTE A strainer, approximately 20 mesh, should be installed on the suction side of the pump to prevent chips, scale or hard foreign particles from entering the pump and damaging the raceway and impeller.
