Burks # 5CT7ME Close Coupled Regenerative Turbine Pump - EPT Seal version
Burks # 5CT7ME

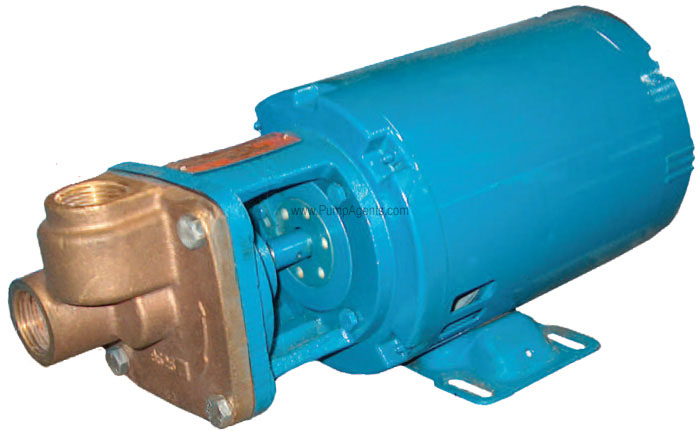

Burks catalog # 5CT7ME, Close Coupled Regenerative Turbine Pump and Motor unit. Bronze Construction, with a Bronze Impeller and EPT/Carbon/Ceramic/SS Mechanical Seal. Pump is close coupled to a 1/2 Horsepower, 3500 RPM, 115/230 Volts, Single Phase, ODP Open Drip Proof Motor. Ports are 1 Inch NPT Inlet, 1 Inch NPT Outlet.
Price : $ 3468.31
Product Information :
Parts Page (click here)
Product Manual PDF (view)
the Burks 5CT7ME is a Bronze Close Coupled Regenerative Turbine Pump with a Bronze Impeller, EPT/Carbon/Ceramic/SS Mechanical Seal, 1 Inch NPT Inlet, 1 Inch NPT Outlet Ports, close coupled to a 1/2 Horsepower, 3500 RPM, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60Hz Motor. This pump has a maximum performance of up to 5. 5 gallons per minute water flow at 225 feet of head (97 PSI). The motor on this pump has open drip proof construction and is rated with jet pump service factors for continuous duty operation at all ratings shown. The single phase motor on this pump is capacitor start/induction run with buit-in overload protection and is U. L. recognized. This pump is the non-standard version with an EPT seal, which is used in this pump for chemical resistance. This compact turbine pump is designed for pumping clear water and many other non-abrasive, lower viscosity liquids. It is especially engineered for boiler feed on steam process applications and will serve up to a 38 hp. boiler at a 3 to 1 safety factor. This pump's unique design is engineered for many applications requiring higher pressures and lower capacities impossible for other single stage pumps of a similar size. The pump shaft seal is a mechanical seal with ceramic seat and carbon seal face for maximum durability, and long trouble-free service. While this pump can be run dry for short periods of time, a lack of liquid will damage the Mechanical seal. The wetted material in contact with the liquid are Cast Iron, Bronze, 303 Stainless Steel, and EPT.
WEIGHT : This pump and motor unit weighs 35 Lbs.
Features :
Product Specs :
Raceway Sealing grooves, machined into the face of the raceway, match the impeller sealing grooves, minimizing water slippage and increasing delivery efficiencies.
Impeller Annular grooves or sealing rings, machined into the face of the impeller are perfectly matched with corresponding grooves in the raceway and intermesh without metal-to-metal contact to form a labyrinth seal.
Extended LifeLok adjustment allows for extendeded life, field adjustment, and restoring factor efficiency as hydraulic passage wears.
Parts and Accessories for Burks model 5CT7ME
Applications
Designed for versatile, high performance applications these Burks CT series Turbine Pumps are designed for pumping any clean, noncorrosive, nonabrasive lower viscosity liquid on low flow, highhead applications. They are used is a wide range of industries on applications such as hightemperature water and oil heat transfer applications, Boiler feed and condensate return circulation, Hot and cold water circulation, brine recirculation, hydraulic oil circulation. They can be used in many metering applications such as additive metering and hot water spray, or in pressure maintenance applications such as being used as jockey pumps, or for pressure boosting. These are just a few of the most common applications. The durable materials of construction, long service life, and low maintenance design make the Burks Turbine Pump an excellent choice for numerous clean water applications. These pumps are designed for low maintenance and long service life. To operate the pump raceway conducts fluid into the impeller and then provides a channel for the liquid to move as it is propelled and energized by the impeller. The Burks Regenerative Turbine Pump is unique in design and is engineered for high pressure, low flow applications. An integral part of their unique design is the LifeLok feature that provides a way to externally adjust the clearance between the impeller and raceway. Burks is the only regenerative turbine pump that has this feature. This adjustment is used for precise setting of pump performance during production testing. LifeLok makes the Burks Turbine Pump field adjustable. Because of the lowflow, high head characteristics of the regenerative turbine, the pump pressure may be adjusted when necessary to match critical system requirements without appreciably changing the flow rate. LifeLok also allows pump performance to be restored to like new after years of service, greatly extending pump life. There is an adjusting screw that is located in the shaft extension end of the motor on CloseCoupled Pumps. A positive preload spring pressure is applied to the pump shaft bearing and, in turn, is transmitted to the adjusting screw. This controlled pressure eliminates bearing end play and provides a means for external adjustment of the clearance between the impeller and raceway. Burks Turbine Pumps are of the positive displacement type. When the pump is operating, liquid will be delivered to the discharge side of the pump. If the discharge line is blocked or closed, pressure will build up until the motor stalls, a pump part breaks or the piping bursts. To prevent the possibility of equipment damage or personal injury, a pressure relieving device of adequate size must be incorporated in the discharge side of the system. NOTE When pumping hot water over 180 degrees F, check the NPSH available in the pumping system against the required pump NPSH shown on pump performance curves. Available NPSH must be greater than required NPSH.
