Burks # T154GA6-2-AB Centrifugal Pump and Motor 1-1/2 HP

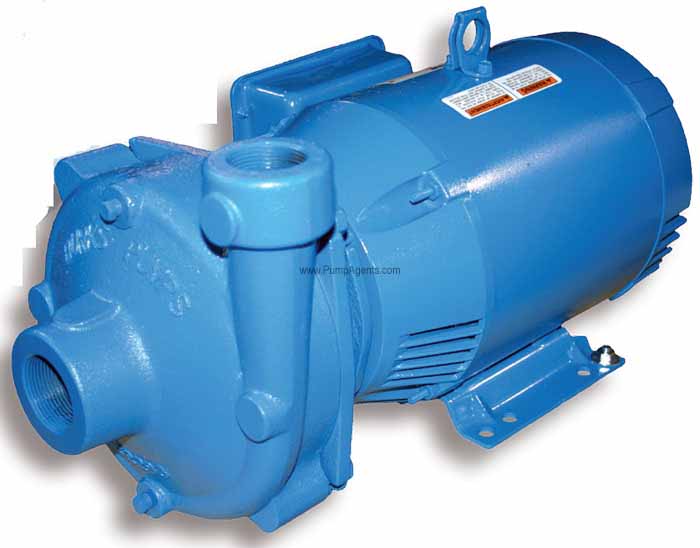

The Burks T154GA6-2-AB is a Bronze Centrifugal Pump and Motor with a Bronze 6. 25 inch diameter Impeller, Buna-N/Carbon/Ceramic/Stainless Steel Mechanical Seal, 2-1/2 Inch Inlet x 2 Inch Outlet Ports, close coupled to a 1-1/2 Horsepower, 1750 RPM, 115/230 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60Hz, 145JM nema frame electric Motor. This pump is an All Bronze version. Bronze pumps are suitable for most common liquids in the pH range from 4-11. This compact Centrifugal pump is designed for general purpose pumping, water circulation, and liquid transfer or booster service. It is silent, and efficient, so it is ideal for convenient equipment location in offices, laboratories, public areas, and living quarters. Long trouble-free service life has made these centrifugal pumps acceptable for industrial uses or wherever clean or contaminated liquids compatible with Bronze is to be transferred or handled. This Burks centrifugal pump has a single rotating enclosed bronze impeller of the latest hydraulic design for maximum efficiency. Liquid enters at the center and is thrown outward radically by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient, pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines, and consequently a relief valve is not required. The pump impeller is balanced for vibration-free operation and threaded onto a stainless steel motor shaft. The operating temperature limits of this All Bronze pump depend on the seal elastomer and the operating temperature limit for the pump with the Buna-N seal is 225 degrees F (107 degrees C). The pump shaft seal is a mechanical seal with ceramic seat and carbon seal face for maximum durability, and long trouble-free service. While this pump can be run dry for short periods of time, a lack of liquid will damage the Mechanical seal. This pump has a Bronze shaft sleeve - the gasketed and keyed hook-type sleeve protects shaft from wear and corrosion in seal area. The motor on this pump has totally enclosed fan cooled construction and is rated with pump motor service factors for continuous duty operation. This motor must be installed with magnetic a starter which provides full overload protection on all legs. Failure to use correct starter and overloads will void motor warranty. Motors are 145JM frame size with NEMA standard mounting flange, extended steel shaft and dual bearings. These motors offer the advantages of quiet operation, controlled shaft deflection for longer seal life, and bearings sized to provide good service life. The wetted material in contact with the liquid are Bronze, 303 Stainless Steel, and Buna-N. The dimensions of this pump are 19 inches long, 10-1/2 inches high, and 16 inches wide.
WEIGHT : This pump and motor unit weighs 78 Lbs.
