Burks # T15WT5 Self Priming Centrifugal Pump 1-1/2 HP
Burks # T15WT5

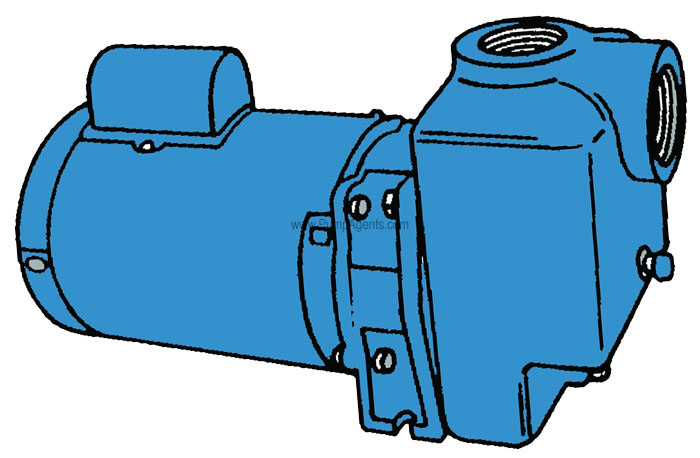

Burks catalog # T15WT5, Self Priming Centrifugal Pump and Motor unit. Cast Iron Construction, with a Bronze Impeller and Buna/N/Carbon/Ceramic/SS Mechanical Seal. Pump is close coupled to a 1-1/2 Horsepower, 3500 RPM, 115/230 Volts, Single Phase, TEFC Totally Enclosed Fan Cooled Motor. Ports are 2 Inch NPT Inlet, 2 Inch NPT Outlet.
Price : $ 3231.75
Product Information :
Parts Page (click here)
Product Manual PDF (view)
The Burks T15WT5 is a Cast Iron Self Priming Centrifugal Pump with a Bronze Impeller, Buna-N/Carbon/Ceramic/SS Mechanical Seal, 2 Inch NPT Inlet, 2 Inch NPT Outlet Ports, coupled to a 1-1/2 Horsepower, 3500 RPM, 115/230 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60Hz Motor. This pump has a Maximum flow rate of up to 81 gallons per minute water flow at 10 feet of head and is self-priming with a suction lift of 10 feet without a foot or check valve (25 foot suction lift using a foot or check valve and a filled inlet line). Be sure suction lines are airtight or pump will not self-prime. These WT5 Series pumps have rugged Swimming Pool type motors with oversize ball/ball bearing construction with builtin overload protection. This pump has a Maximum flow rate of up to 55 gallons per minute water flow at 10 feet of head and is self-priming with a suction lift of 10 feet without a foot or check valve (25 foot suction lift using a foot or check valve and a filled inlet line). Be sure suction lines are airtight or pump will not self-prime. These WT5 Series pumps have rugged Swimming Pool type motors with oversize ball/ball bearing construction. The motor on this pump has open-drip proof (ODP) construction and is rated with standard NEMA Jet Pump service factors for continuous duty operation at all ratings shown and is U. L. Recognized with builtin overload protection. This line of Burks Self-Priming Centrifugal pumps is designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and chemical processing. These pumps feature a Non-Clogging, Bronze Semi-Open Impeller, and Buna-N seals for water and other fluids with specific gravities of 1. 00 S. G. The operating temperature limits of this pump depend on the seal elastomer and the following temperature limit applies for Buna-N Seals : 225 degrees F (107 degrees C). The pump shaft seal is a mechanical carbon face type mated to ceramic wear face for maximum durability. These Self Priming Pumps require very little attention, resulting in significant savings of maintenance time and money and making them a sensible solution for industrial and municipal applications. While this pump can be run dry for short periods of time, a lack of liquid will damage the Mechanical seal. Self priming centrifugal pumps must be operated in the horizontal position. Centrifugal pumps are designed for single rotation and are non reversible. Standard rotation is counter clockwise looking at the pump inlet port (clockwise facing pump shaft). The wetted materials in contact with the liquid are Cast Iron, Bronze, 303 Stainless Steel, and Buna-N. The dimensions of this pump are 18 inches long, 9-1/8 inches high, and 6-7/8 inches wide.
WEIGHT : This pump and motor unit weighs 70 Lbs.
Features :
Product Specs :
Compact, Close-Coupled Design.
Rugged Bronze-Fitted Cast Iron Construction.
Leakproof Mechanical Shaft Seal.
Non-Clogging, Bronze Semi-Open Impeller.
Stainless Steel Shaft.
Back Pull-Out Design For Easy Servicing.
Available With or Without Built-In Basket Type Strainer
Self-Priming, Once Case is Filled With Fluid.
Diaphragms, Flappers or Check Valves Are Not Required In Pump Suction Piping But Are Recommended.
EVERY pump is factory tested and will meet Hydraulic Institute standards.
Parts and Accessories for Burks model T15WT5
Applications
This is a robust, longlife Cast Iron, General Purpose, Self Priming Centrifugal pump, with high efficiency and flow, designed specifically for the industrial, agricultural, marine and home end user markets. Typical Applications for this pump are Lawn Sprinkling, Pressure Boosting, Sprinkler Systems, Light Irrigation, Dewatering clean liquids, and Transfer from underground storage. SUCTION LIFT PRIMING A foot valve should be used for priming on suction lift applications. The foot valve, located at the end or foot of the suction piping, functions as a check valve and allows flow in one direction only, toward the pump. Otherwise, all the liquid will drain from the pump and suction piping back into the sump after shutdown. Initial priming is accomplished by completely filling the suction piping and pump casing with the liquid to be pumped. This can be done by removing the priming plug at the top of the pump casing, and inserting a pipe nipple in the orifice with an appropriate increaser to accommodate a hose connection. A priming line can also be inserted in the discharge piping between the check valve and the pump, or the priming can be done with a bucket and funnel. The important thing is to completely fill the suction pipe and pump casing with liquid. When the pump is started, the vacuum created by pumping the priming fluid, combined with atmospheric pressure in the liquid well, forces liquid into the suction piping, thus opening the valve and keeping it open until the pump is shut down. When the pump is shut down, the liquid being pumped reverses its flow causing the valve to close. The liquid is now trapped in the suction piping and pump casing, thus maintaining a prime on the pump.
