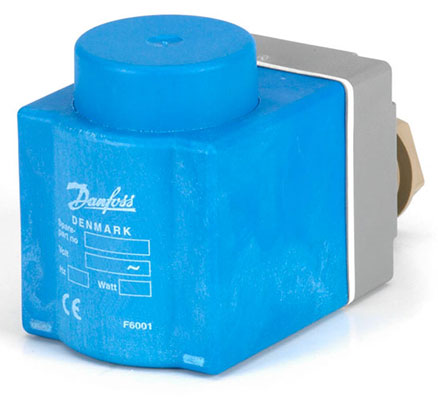

Danfoss part # 018F7914 Solenoid Coil 24VDC 16W
Danfoss # 018F7914
Danfoss catalog # 018F7914, Solenoid Coil, with terminal box Electrical connection, 24 Volts DC supply voltage, and IP67 Enclosure rating. Type BE without LED.
Price : $ 76.81
Product Information :
The Danfoss part # 018F7914 is a Solenoid Coil, with terminal box Electrical connection, 24 Volts DC supply voltage, and IP67 Enclosure rating. Type BE without LED. .
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [C] | 50 C |
| Ambient temperature range [F] | 120 F |
| Approval | LLC CDC TYSK UL |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection Box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Description | Coil BE024DS 24V DC Box |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
