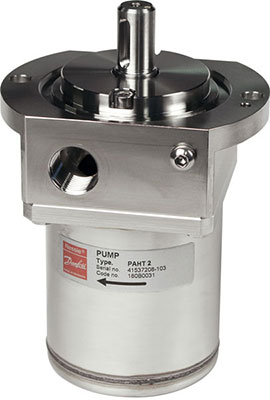

Danfoss Pump # 180B0031 Axial Piston pump
Danfoss # 180B0031
Danfoss catalog # 180B0031, PAHT 2 series Axial Piston pump with 1/2 inch threaded BSPP Inlet port, 1/4 inch threaded BSPP Outlet port, and is rated for a maximum flow of 1.0 GPM, and maximum outlet pressure of 1450 psig.
Price : $ 5368.33
Product Information :
The Danfoss Pump 180B0031 is a PAHT 2 series Axial Piston pump with 1/2 inch threaded BSPP Inlet port, 1/4 inch threaded BSPP Outlet port, and is rated for a maximum flow of 1.0 GPM, and maximum outlet pressure of 1450 psig. Danfoss PAHT series high-pressure pumps are specifically designed for use with technical water such as Ultra-pure water that has undergone multiple reverse osmosis processes, De-ionized water, and De-mineralized water. Danfoss PAHT pumps are positive displacement pumps, with axial pistons that move a fixed amount of water in each cycle. Flow is proportional to the number of input shaft revolutions (rpm). Unlike centrifugal pumps, they produce the same flow at a given speed independently of no matter what the discharge pressure. All components are designed to provide long service life with a constantly high efficiency and minimum service required. Efficient design and all-stainless steel construction ensure exceptionally long lifetime. The highly efficient axial piston design provides the lowest energy consumption of any comparable pump on the market.
Parts and Accessories for Danfoss model 180B0031
Shaft Seal :
Catalog # 180B4100, Seal and screw kit, used in PAH 4, PAH 2, PAHT 6.3, PAHT 4, PAH 6.3, PAHT 2, and PAHT 3.2 pumps.
Price: $ 442.88
Applications
The 180B0031 PAHT highpressure pump is specifically designed for use with technical water in applications such as Ultrapure water that has undergone multiple reverse osmosis processes, Deionized water, Demineralized water, as well as other applications. Application examples are Highpressure cleaning with ultrapure water, as used in the manufacturing of flatpanel displays and many other electronic products. Highpressure cleaning with ultrapure water, as used in the manufacturing of parts for the automobile industry. Adiabatic cooling systems to replace or supplement standard A/C systems in server rooms and factories. Humidification in office buildings, electronic component manufacturing, dairies, greenhouses, etc. Dust suppression and odor control systems, for example in paper, textile and wood production. Reduction of NOx emissions in diesel engines and gas turbines. Gas turbine by inlet fogging and fuel wash systems.
This pump does not require a pulsation dampener due to extremely lowpressure pulsation. It can be powered by an electric motor or a combustion engine. It is suitable for both boosted inlet pressure and water supply from a tank. There is no need for cooling circuits due to very high mechanical efficiency.
